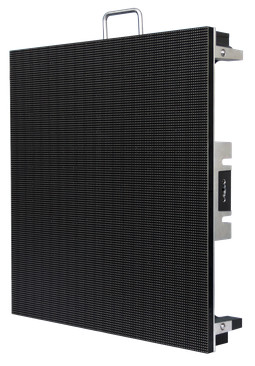

Fantasy series Modular led video panels , outdoor big screen rental

Large Image : Fantasy series Modular led video panels , outdoor big screen rental Get Best Price

Product Details:

Place of Origin:	Guang Dong, China (Mainland)
Brand Name:	Newstar
Certification:	CCC , CE ,ROHS , ETL
Model Number:	FS- 6.25

Payment & Shipping Terms:

Minimum Order Quantity:	1 Square Meter
Price:	US $ 100 - 890 / Square Meter
Packaging Details:	Flight case
Delivery Time:	15-20 days
Payment Terms:	Western Union, MoneyGram, D/A, D/P, L/C, T/T
Supply Ability:	6,000 Square Meters per Month

Contact Now

Detailed Product Description

Pixel Pitch:	6.25 Mm	Pixel Density:	25,600 Pixels /sq.m
LED Type:	SMD3528	LED Configuration:	1R1G1B
Refresh Rate:	2，880 Hz	Driving IC:	MBI 5124
Viewing Angle:	140°/140°	Module Dimension:	250mm X 250mm
Cabinet Size:	500mm X 500mm	Brightness:	1200 CD / Sq.m
Material:	Die Casting Aluminum	LED Chip:	Epistar
Scan Way:	1/10	Gray Scale:	16 Bit
IP Rating:	IP31	Lifespan:	100,000 H
Usage:	Indoor Rental LED Display
High Light:	digital billboard advertising , outdoor led advertising signs

Fantasy series Modular led video panels , outdoor big screen rental

Fantasy series Modular led video panels , outdoor big screen rental 0

1.Features

1. Die-casting aluminum cabinet design with high precision technology ;

2. HD show without water ripple on program broadcasting;

3. Easy to assemble & dismantle with fast locks on each panel ;

4. High gray level & good color uniformity ;

5. Front Sevice Structure. Just need two small wrenches and few seconds we can take the module out from the cabinet easily and quickly.

Fantasy series Modular led video panels , outdoor big screen rental 1

Fantasy series Modular led video panels , outdoor big screen rental 2

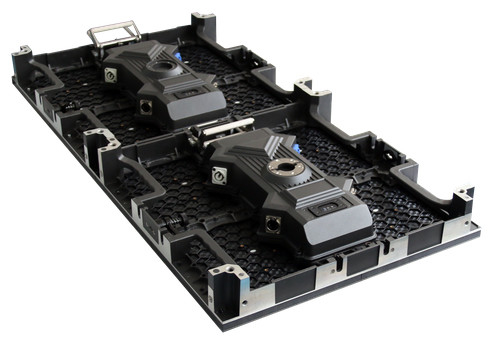

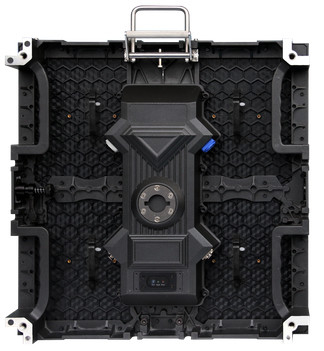

2. Cabinet detailed structure

3. Technical parameters

Model No.	FS-6.25
Pixcel pitch	6.25 mm
Pixel density /sq.m	25,600 pixels
LED configuration	1R1G1B SMD3528
Module size	250 x 250 mm
Cabinet size	500 x 500 mm
Panel resolution	80 x 80 dots
Scan way	1/10
Refresh rate	2,880 Hz
Panel weight	8 kg
Brigtness	1200 CD / sq.m
Max. power consumption	300 W/Panel
Avg. power consumption	105 W/ Panel
Input voltage	AC 110-220 V (+-5 %)
Blind dot rate	≤0.01%
IP rating	IP31
Control system	Novastar/ Linsn
Operating system	Windows/me/200NT/XP
Working humidity	10-90% RH
MTBF	35,000 h
Lifetime	100,000 h
