SMD 3528 Slim outdoor full color led display For Stage , FS-5.68
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Pixel Pitch: | 5.68mm | Pixel Density: | 43,264 Pixels /sq.m |
|---|---|---|---|
| LED Type: | SMD 3528 | LED Configuration: | 1R1G1B |
| Refresh Rate: | 2，880 Hz | Driving IC: | MBI 5124 |
| Viewing Angle: | 140°/140° | Module Dimension: | 250mm X 250mm |
| Cabinet Size: | 500mm X 500mm | Brightness: | 1200 CD / Sq.m |
| Material: | Die Casting Aluminum | LED Chip: | Epistar |
| Scan Way: | 1/11 | Gray Scale: | 16 Bit |
| IP Rating: | IP31 | Lifespan: | 100,000 H |
| Usage: | Indoor Rental LED Display | ||
| High Light: | outdoor full color led display,outdoor led video display |
||
SMD 3528 Slim outdoor full color led display For Stage , FS-5.68
1.Features
Fantasy series rental led display with unique modular and front maintenance structure design, concentrated on reducing maintenance trouble.
Moreover, Aluminum Die-casting technology help to achieve an high connection precision.
Fantasy series with 8Kg/Panel and 500 x 500 x 80 mm only make it portable and easy to install, dismantle.
Easy to replace and maintain with Front Sevice Structure, realizing time and labor saving. Just need two small wrenches and few seconds we can take the module out from the cabinet easily and quickly.

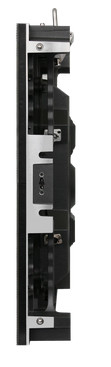

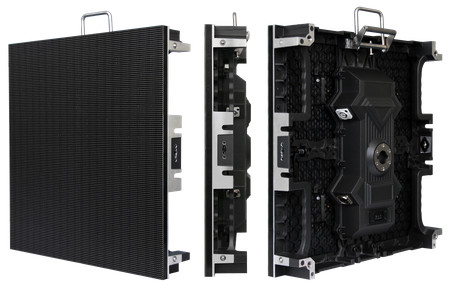

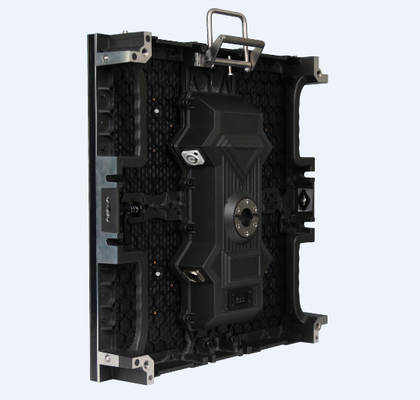

2. Cabinet detailed structure
3. Technical parameters
| Model No. | FS- 5.68 |
| Pixcel pitch | 5.682 mm |
| Pixel density /sq.m | 30,976 pixels |
| LED configuration | 1R1G1B SMD 3528 |
| Module size | 250 x 250 mm |
| Cabinet size | 500 x 500 mm |
| Panel resolution | 88 x 88 dots |
| Scan way | 1/11 |
| Refresh rate | 2,880 Hz |
| Panel weight | 8 kg |
| Brigtness | 1200 CD / sq.m |
| Max. power consumption | 300 W/Panel |
| Avg. power consumption | 105 W/ Panel |
| Input voltage | AC 110-220 V (+-5 %) |
| Blind dot rate | ≤0.01% |
| IP rating | IP31 |
| Control system | Novastar/ Linsn |
| Operating system | Windows/me/200NT/XP |
| Working humidity | 10-90% RH |
| MTBF | 35,000 h |
| Lifetime | 100,000 h |
4. Packaging by flight cases

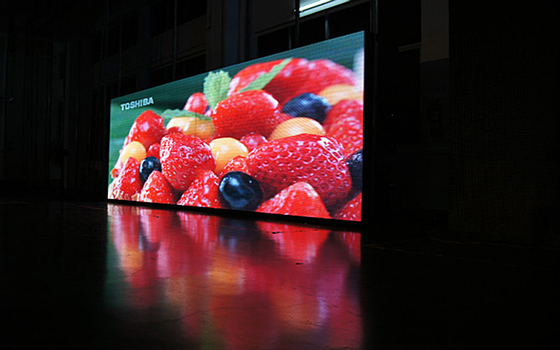

5. Application
Fantasy series rental led display are widely used in stage events, TV station, Concerts,etc.
