Slim Designed P3.91 Outdoor Rental LED Display / Led Advertising Displays
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Pixel Pitch: | 3.91mm | Pixel Density: | 65,536 Pixels /sq.m |
|---|---|---|---|
| LED Type: | SMD2525 | LED Configuration: | 1R1G1B |
| Refresh Rate: | 2，880 Hz | Driving IC: | MBI 5124 |
| Viewing Angle: | 140°/140° | Module Dimension: | 250mm X 250mm |
| Cabinet Size: | 500mm X 500mm | Brightness: | 5,500 CD / Sq.m |
| Material: | Die Casting Aluminum | LED Chip: | Epistar |
| Scan Way: | 1/16 | Gray Scale: | 16 Bit |
| IP Rating: | IP65 | Lifespan: | 100,000 H |
| Usage: | Outdoor Rental LED Display | ||
| High Light: | outdoor full color led display,outdoor led video display |
||
Slim designed with die casting cabinet P3.91 outdoor SMD HD rental LED display
Epoch series outdoor rental led display is a high quality and waterproof rental product with Small cabinet size, ultra thin and light weight, high IP rating.
Currently, P3.91 rental led display is the smallest pixel pitch for outdoor rental case in the led display market.
1.Features
1. Die casting aluminum structure, high-precision processing technology and good heat dissipation;
2. Ultra thin and light weight which with only 9Kg/panel and 75mm thickness;
3. Portable, and easy to set-up and dismantle with four fast locks on each panel;
4. High screen flatness, location accuracy and seamless connection;
5. Easy to maintain, remove and replace the defect part individually.

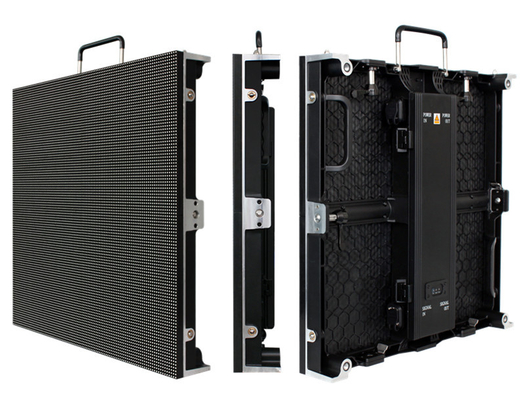

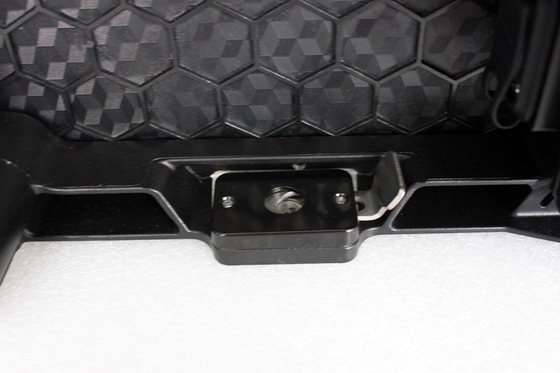

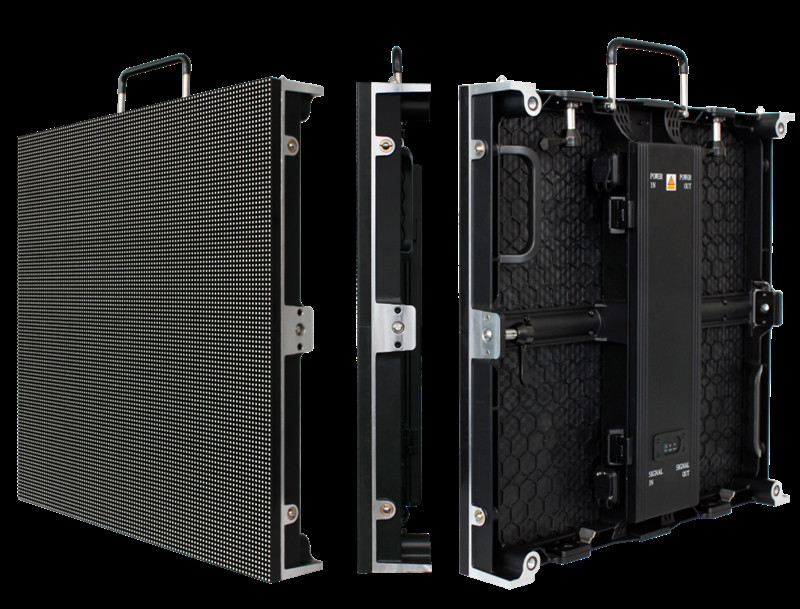

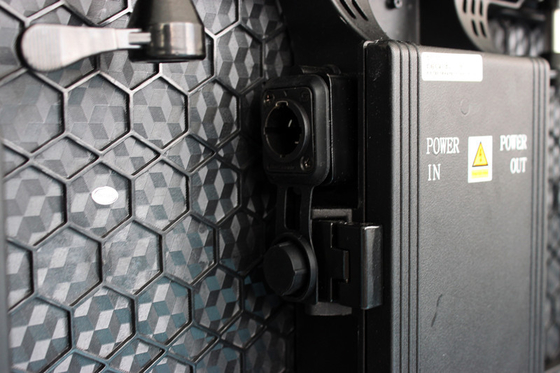

2. Cabinet detailed structure
3. Technical parameters
| Model No. | OES-3.91 |
| Pixcel pitch | 3.91 mm |
| Pixel density /sq.m | 65,536 pixels |
| LED configuration | 1R1G1B SMD 2525 |
| Module size | 250 x 250 mm |
| Cabinet size | 500 x 500 mm |
| Panel resolution | 128 x 128 dots |
| Scan way | 1/16 |
| Refresh rate | 2,880 Hz |
| Panel weight | 8.5 kg |
| Brigtness | 5,500 CD / sq.m |
| Max. power consumption | 300 W/Panel |
| Avg. power consumption | 105 W/ Panel |
| Input voltage | AC 110-220 V (+-5 %) |
| Blind dot rate | ≤0.01% |
| Control system | Novastar/ Linsn |
4. Packaging by flight cases
5. Application

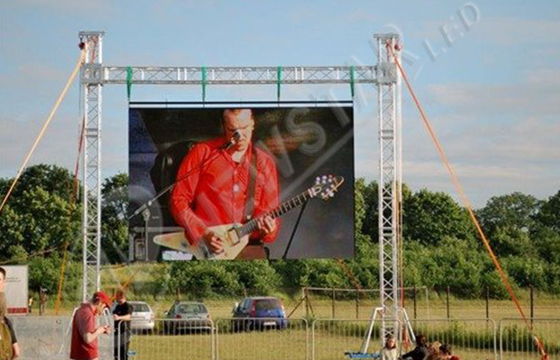

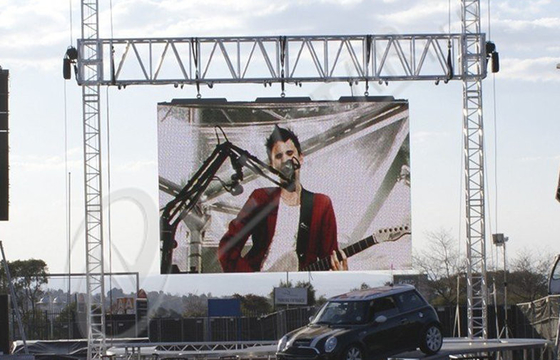

Epoch Series outdoor rental led display is widely used in Concerts center, Expo Events, Media presentations, Weddings.
