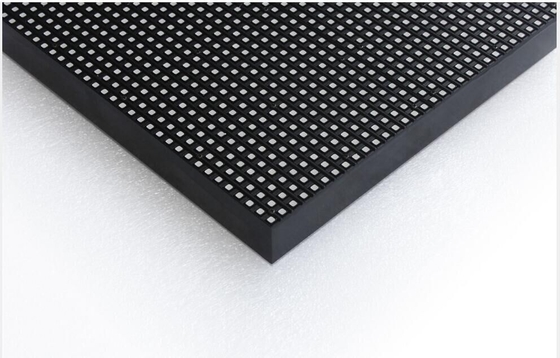

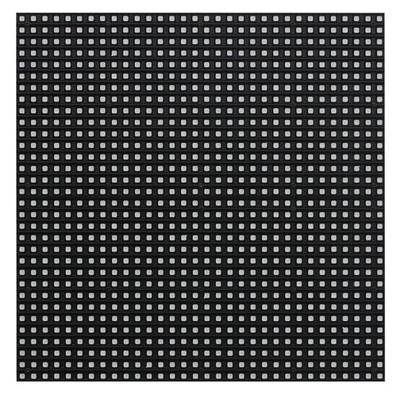

Outdoor IP65 Die Casting LED Video Screen P4.81 Led Display Module 500x500mm

    LED video screen outdoor IP65 diecasting P4.81 500x500mm rental LED display

Newstar brand Epoch Series LED screen - Outdoor small pixel pitch.

Newstar develop the outdoor rental dot pitch small down to 3.91mm, when pitch output usually 5mm or 6mm. By maximum precision 0.05mm, the video wall Epoch gave will better than alternatives.

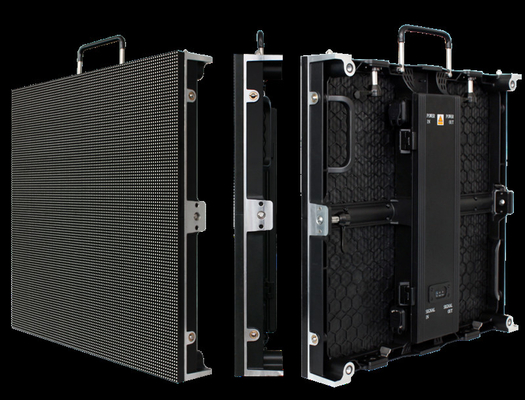

With 500x500mm cabinet, Epoch Series also provide 4.81mm, 5.95mm and 6.25mm to give customers best pitch options.

Fastest top and side lock design, the assembly and dismantle will be more time and labor saving.

The specification

Connection: Using Seetronic for main power/signal line and cabinets power/signal line

The cabinet was designed to convenient connection, for faster installation. The wiring can reference below drawing:

Installation: easier and faster lock design, hanging installation.

Install from the middle of hanging bars

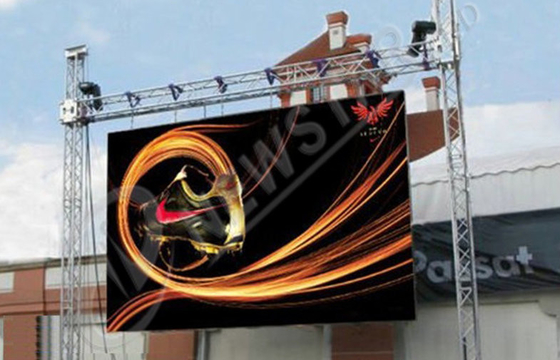

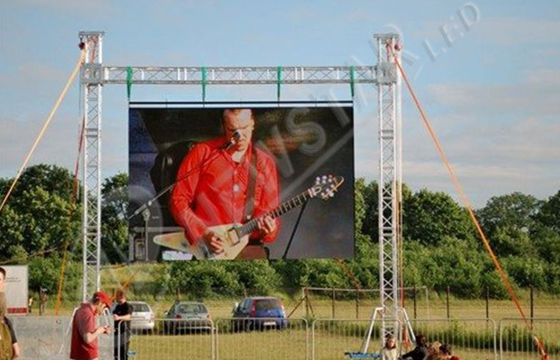

Project reference: 7 panles width, 4 panels height

Maintenance: Replace the modules, power supplies and receiving cards from back

Decrease LED Defect Rate: Top soldering technology + AOI inspection

In Newstar, every PCB will be inspected by the AOI machine, instead of no inspection or inspected by eyes. Good soldering technology and strict inspection give LED screens strong stability and decrease the LED defect rate.

Brightness & RGB balance auto-calibration is available after module replacement

The 4.81mm outdoor cabinet was designed to IP65 waterproof and high brightness (> 6000 nits)

Synchronous control: User only need to use desktop to control the video wall(sending card connect with PC).

If customer want to use laptop control, or with other device use together, the video processor will be necessary.

The video processor can switch the signal from other device, such as laptop, desktop, camara, DVD, TV...
