High definition P8 SMD Stadium Perimeter LED Display 7000cd/㎡ led screen

Large Image : High definition P8 SMD Stadium Perimeter LED Display 7000cd/㎡ led screen Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	NS-OR-DS-P8

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $2,000-3,000 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	8-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Month

Contact Now

Detailed Product Description

High Light:

sports perimeter led display

perimeter led screen

P8 SMD Stadium Perimeter LED Display , High definition 7000cd/㎡ led screen

Quick Detail:

1. 28°support adjustable

2. Waterproof and 2 years warranty

3. High Brightness more than 8000cd/sqm

4. Long lifespan up to 100,000 hours

5. Soft mark used

6. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION

Description:

1. High Brightness

More than 8000nits and it can be sawn from long distance.

2. Soft Mask

Soft mask design delivers good protection to the players and also decreases damage to LEDs.

3. Adjustable support and quick rigging system

Flexible support design makes LED panel lean by multi angles to cater audience’s needs and quick riggingsystem design makes the installation and dismantle easier and faster.

4. Cost Effective LED display

16mm not only delivers enough resolution but also decrease the cost comparing with 10mm and 12mm.
5. Waterproof and 2 Year Warranty

Water Proof IP65 and 2 year warranty. LED display can work in all-weather condition very well.

Applications:

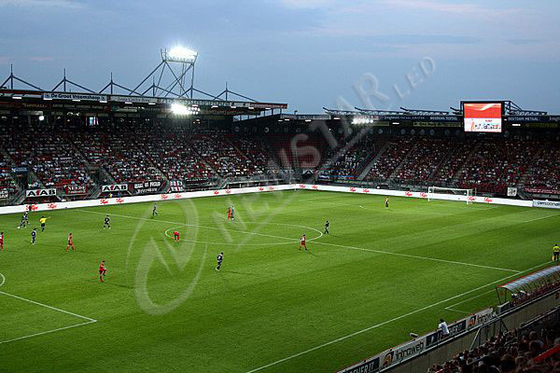

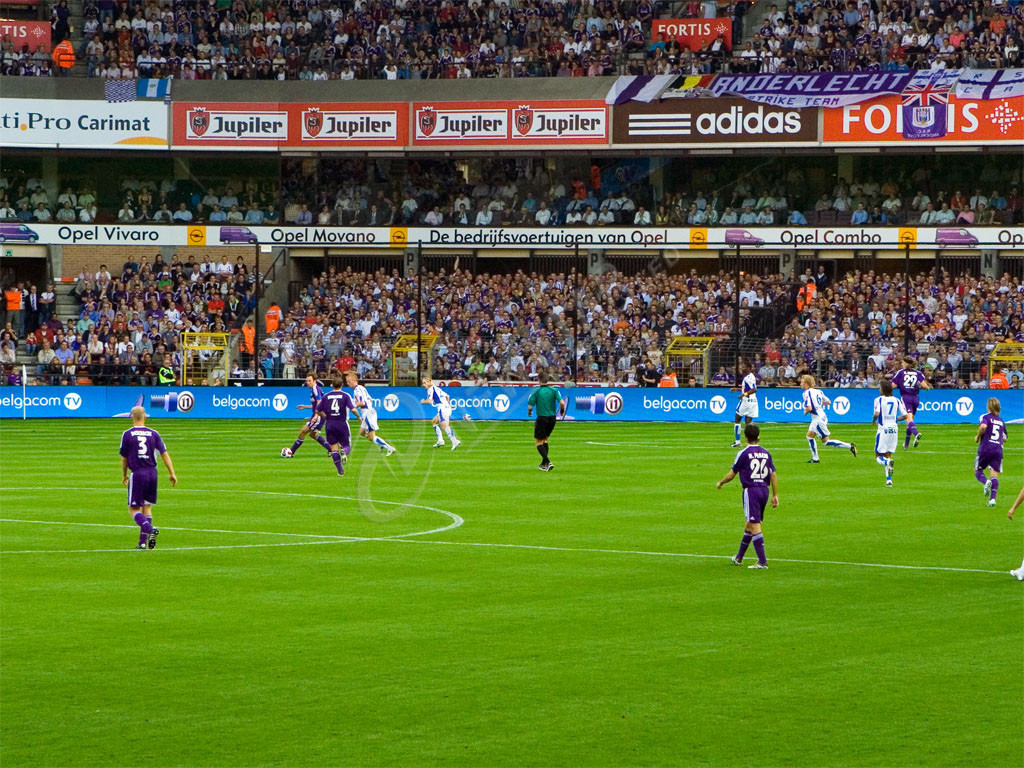

Stadium inside and outside such as football pitch, baseball, basketball etc.

Specifications:

1. Outdoor LED Display Technical Parameter

Model No.	NS-OR-DS-P8
Pixel Pitch	8mm
Module Size	256mm ×128mm
Module Resolution(Pixel)	32dots ×16dots
Pixel Density	15,625dots/㎡
LED Type	SMD 3535
Pixel Configuration	1R1G1B
Wavelength (R.G.B)	R:625±2nm G:525±2nm B:470±2nm
Drive Mode	1/4
Cabinet Size	1024 ×768mm
Cabinet Resolution	128dots ×96dots
Brightness	≥7,000 cd/㎡
Contrast	≥ 4000:1
Viewing Angle	140°(Horizontal )/140°(Vertical )
Best Viewing Distance	7m
Grey Scale	10bits/1024levels
Color Capability	16,777,216
Color Temperature	5000-9300K
Maximum Power Consumption	1300W/㎡
Average Power Consumption	800W/㎡
Working Voltage	AC 220V/110V s±15% 50-60 HZ
Frame Frequency	60-85 HZ
Refresh Frequency	240 - 1000HZ
Brightness Correction	Pixel, Module, Cabinet Correction
Operating Temperature	Static:-40°C ~+85°C Working:-20~+65°C
Operating Humidity	10-90% RH
LED Lifespan	100,000 hours
MTBF	≥50,000 hours
Computer Operation System	Win 98/ Win XP/ Win 2000
Video Signal Input	RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite
Video Signal Output	RF, S-Video, GB, RGBHV, YUV, YC etc.
Graphics Card	DVI Graphics Card
Control Distance	UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km
Control System	LED studio 10.0
Software	LINSN / Nova/ DB-STAR
Waterproof Level	IP65
Installation	Wall mount, hung and stand structure
Out of Control Rate	0.01 %

2. Outdoor LED Display Module

Module Size (W*H)	256mm *128mm	Pixel Configuration	1R1G1B
Pixel Pitch	8mm	Resolution (W*H)	32dots *16 dots
Pixel Density	15,625 dots/㎡	LED Type	SMD 3535

3. Outdoor LED Display Cabinet

Cabinet Size (W*H)	1024mm *768mm	Module Qty	24 pcs
Cabinet Resolution (W*H)	128 dots *96 dots	Cabinet Pixel	12,288,
Average Power Consumption	800w/㎡	Max Consumption	1300W/㎡

4. Methods for Quality Assurance

a. Aging

b. Waterproof test

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

8. Competitive Advantage:

1. 24/7 Online support service

2. Free onsite maintenance / Year

3. Solution design

4. Free online training any time

5. High quality raw material used like neutrik flight connector, MBI IC etc.
