Supper Thin 360 Curtain Indoor SMD High Definition LED Display Flexible Led Panels

Large Image : Supper Thin 360 Curtain Indoor SMD High Definition LED Display Flexible Led Panels Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	LS-5

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $1,000-3,000 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	8-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Month

Contact Now

Detailed Product Description

Product Name:	Die Casting Led Display/led Display Signs	Pixel Pitch:	5.21mm
Pixel Configuration:	1R1G1B	Tube Chip Color:	Full Color
Use:	Indoor	Protection Ratings:	IP21
High Light:	led advertising displays , led video wall display

Supper Thin 360 Curtain Indoor SMD High Definition LED Display Flexible Led Panels

Quick Detail:

1. Brilliant contrast ratio, high resolution/high definition

2. Super light and can be installed by one person

3. Super uniformity and no mosaic

4. Available product model: P3.84, P4, P4.8, P5.33, P6.

5. Waterproof Level: IP21

6. Brightness(cd/m2)>2000nit

Description:

1. Supper thin Design

576 x 576 x 83mm per panel.

2. Fast and simple Assembly

No tools needed, one person can install at least 70 cabinets per hour. One person can finish the whole

process alone.

3. Light Weight

One cabinet only weights 9 KG, 34KG for one square meter.

4. Aluminum Die casting Materials

good appearance, anti-corrosiveness . 9 kg/panel,

Applications:

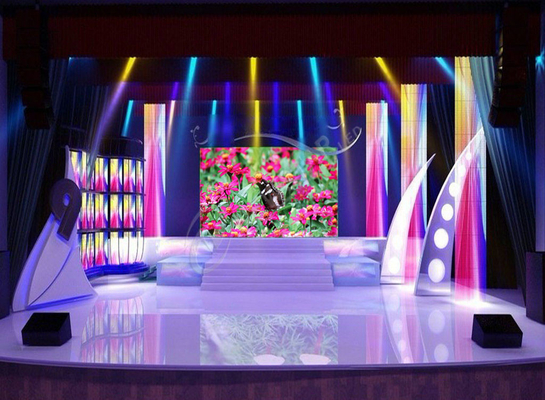

Commercial advertising, mobile media, night club, entertainment events, business establishments, such as

banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,

shopping malls, railways, airports, harbors, etc;

Specifications:

1. Indoor LED Display Technical Parameter

Model No.	LS-5
Pixel Pitch	5.33mm
Module Size	288*288mm
Module Resolution(pixels)	54*54
Panel Size	576mm×576mm
Panel Resolution(pixels)	108×108
Pixel Configuration(RGB)	1R1G1B
Pixel Density(pixels/m2)	35,200
Brightness(cd/m2)	2,000
Best Viewing Distance(m)	5-100
Max.Power Consumption(W/m2)	900
Waterproof Level	IP21
Wavelength	R 620-625 G 520-525 B 470-475
LED SPEC	3528
Viewing Angle	140°(H)/140°(V)
Operating Temperature	–40~60°C
Video Frame Rate(Hz)	≥60HZ
Display Refresh Rate(Hz)	≥300HZ
Grey Level(colors)	16.7million
MTBF	≥50,000 hours
Lifespan	≥100,000Hours
Working Voltage	220V±15% OR 110V±15%
Drive Mode	Constant 1/9
Graphics Card	DVI Graphics card
Video Signal	RF, S-Video, RGB, RGBHV, YUV, YC, etc.
Control System	LINSN
Software	LED studio 10.0
Installation	Wall mount, hung and stand structure

2. Indoor LED Display Module

Dimensions (w x h)	288mmx288mm	Resolution (w x h)	54 x 54
Pixel pitch	5.33mm	Pixel Density	35,200/㎡
Pixel Configuration	1R1G1B 3 IN 1	LED Type	3528 LED

3. Indoor LED Display Cabinet

Dimensions(w x h x d)(mm)	576x576x83	Module Quantity	4
Physical Resolution (w x h)	108x108	Physical Pixels (total)	11,664
Weight/Panel (kgs)	9	Material	Aluminum Die casting
Average Power/sqm (watts)	330	Max Power/sqm(watts)	900

4. Methods for Quality Assurance

a. Aging

1. 100% fully test

2. Condition: 72 hours with 256 grey level

b. Vibration Testing

Condition: 3-5 mins up and down in 5mm range

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

8. Competitive Advantage:

1. 2 years’ warranty with free repair service

2. 24/7 Hours online remote support

3. Solution and PCB design

4. Free factory training

5. Onsite installation instruction and regular inspection
