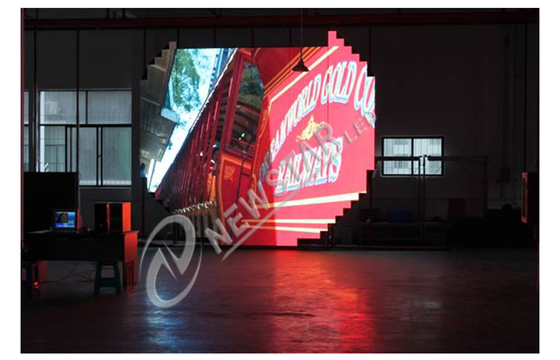

HD SMD 3 in 1 P10 Outdoor Advertising LED Display Board With High Brightness

Large Image : HD SMD 3 in 1 P10 Outdoor Advertising LED Display Board With High Brightness Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	NS-OR-DS-P10

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $1,000-3,000 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	8-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Month

Contact Now

Detailed Product Description

Tube Chip Color:	Full Color	LED Type:	SMD 3 In 1
Pixel Configuration:	1R1G1B	Pixel Pitch:	10mm
Product Name:	Full Color Outdoor Advertising Led Display/advertising Led Display	Use:	Outdoor
High Light:	outdoor led advertising signs , outdoor advertising led screen

HD SMD 3 in 1 P10 Outdoor Advertising LED Display Board With High Brightness

Quick Detail:

1. High brightness outdoor SMD 3 IN 1 LED

2. ≤1mm surface level up, smooth video

3. High brightness: >6000cd/㎡

4. Dynamic 1/4 duty Constant Current

5. IP65 Ruggedness, all-weather qualified

6. Perfect quality and stability, 24/7 running

Description:

1. High Contrast

The Contrast is above 2000:1, so the viewer can have a wonderful visual

2. Perfect uniformity and no mosaic

We always use the same batch of high quality LED to make great LED board. So, Newstar’s display is more

uniform.

3. High Quality and Reliability

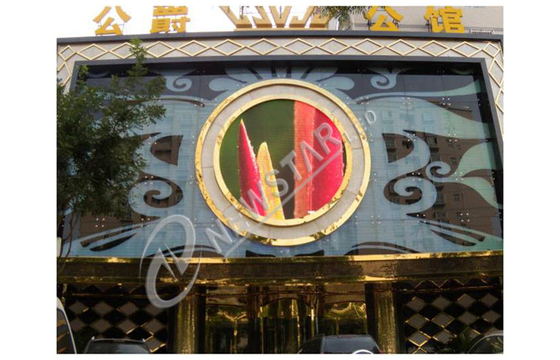

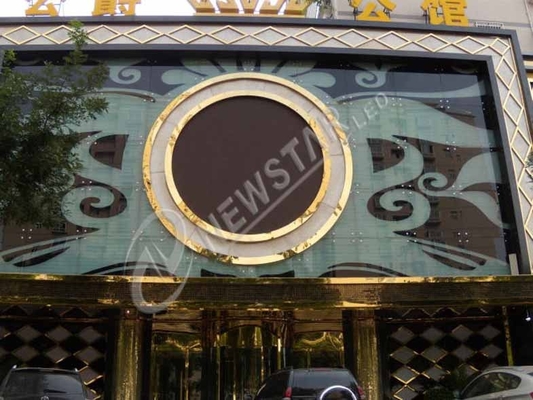

This project has been finished almost 3 years, while there is no product issues called from now on.

Applications:

Commercial advertising: Square, Road side, High way, Airport, Wharf, Hotel, Restaurant etc

Specifications:

1. SMD Outdoor LED Display Technical Parameter

Model No.	NS-IR-DS-P10
Pixel Pitch	10mm
Module Size	320mm×160 mm
Module Resolution(Pixel)	32dots×16dots
Pixel Density	10000dots/m2
LED Type	SMD 3 in 1
Pixel Configuration	1R1G1B
Wavelength (R.G.B)	R:625±2nm G:525±2nm B:470±2nm
Drive Mode	Dynamic 1/4 Duty Constant Current
Cabinet Size	960×960×135mm
Cabinet Resolution	96dots×96dots
Brightness	≥6000 cd/m2
Contrast	≥ 2000:1
Viewing Angle	140°(Horizontal )/140°(Vertical )
Best Viewing Distance	10m
Grey Scale	10bits/1024levels
Color Capability	16777216
Color Temperature	5000-9300K
Maximum Power Consumption	1000W/m2
Average Power Consumption	350W/m2
Working Voltage	AC 220V/110V s±15% 50-60 HZ
Frame Frequency	60-85 HZ
Refresh Frequency	240 - 1000HZ
Brightness Correction	Pixel, Module, Cabinet Correction
Operating Temperature	Static:-40°C ~+85°C Working:-20~+65°C
Operating Humidity	10-90% RH
LED Lifespan	100,000 hours
MTBF	≥50,000 hours
Computer Operation System	Win 98/ Win XP/ Win 2000
Video Signal Input	RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite
Video Signal Output	RF, S-Video, GB, RGBHV, YUV, YC etc.
Graphics Card	DVI Graphics Card
Control Distance	UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km
Control System	LED studio 10.0
Software	LINSN / Nova/ DB-STAR
Waterproof Level	IP65
Installation	Wall mount, hung and stand structure
Out of Control Rate	0.01 %

2. Outdoor LED Display Module

Module Size (W*H)	320mm*160mm	Pixel Configuration	1R1G1B
Pixel Pitch	10mm	Resolution (W*H)	32 dots*16 dots
Pixel Density	10000 dots/㎡	LED Type	SMD 3 in 1

3. Outdoor LED Display Cabinet

Cabinet Size (W*H)	960mm*960mm	Module Qty	18 pcs
Cabinet Resolution (W*H)	96 dots*96 dots	Cabinet Pixel	9216
Weight	40 kg/ Cabinet	Area	0.9216㎡
Average Power Consumption	350w/㎡	Max Consumption	1000W/m2

4. Methods for Quality Assurance

a. Aging

b. Waterproof test

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

8. Competitive Advantage:

1. Reasonable Price, Superior Service.

2. Long Life Span > 100,000 hours

3. Free maintenance service

4. Front/Rear access Available

5. High Quality and High performance
