Multi Color P12 Rental LED Display Panel , High Definition Ultra Thin LED Screen
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Pixel Configuration: | 1R1G1B | Pixel Pitch: | 12mm |
|---|---|---|---|
| Product Name: | Led Display Boards/led Display Signs | Protection Ratings: | IP65/IP43 |
| Tube Chip Color: | Full Color | Use: | Outdoor |
| High Light: | led billboard advertising,digital billboard advertising |
||
Multi Color P12 Rental LED Display Panel , High Definition Ultra Thin LED Screen
Quick Detail:
1. Anti-moisture&corrosion, -40° operation
2. Best consistency with signal input, vivid color
3. IP65 Ruggedness, all-weather qualified
4. CE,ROHS, and UL etc. certificates.
5. Standard cabinet, easy transport and installation
6. Hanging structure design with gapless connection, quickly installation and dismantling
Outdoor DIP Rental LED Display Panel P12 IP65 for Fashion Show , Ultra Thin
Description:
1. Super-thin, super light weight
2. High definition and soft frame
3. Good connection, easy for installation and dismounting
4. Completely aluminum constitution, ultrathin and ultra light, wonderful in mixture color
5. High debugging brightness with 5000-6000nit and no damage to gray scale, matched well with the
debugging technology with nice image.
Applications:

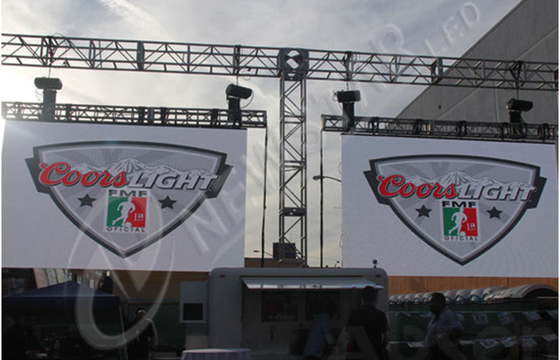

Ideal for dazzling different events, such as Stage, Concert, Fashion Show, Wedding, Conference, Building,
Hotel, Club & Bars, Festival, etc.
Specifications:
1. Outdoor LED Display Technical Parameter
|
Model No. |
NS-OR-DD-P12 |
|
Pixel Pitch |
12mm |
|
Module Size |
192 mm ×192mm |
|
Module Resolution(Pixel) |
16 dots×16dots |
|
Pixel Density |
6944 dots/m2 |
|
LED Type |
3mm Oval Lamp |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/4 Duty Constant Current |
|
Cabinet Size |
1152×768×150mm |
|
Cabinet Resolution |
96dots×64dots |
|
Brightness |
≥6000 cd/m2 |
|
Contrast |
≥2000:1 |
|
Viewing Angle |
110°(Horizontal )/45°(Vertical ) |
|
Best Viewing Distance |
10~300 m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
1000 W/m2 |
|
Average Power Consumption |
350W/m2 |
|
Working Voltage |
AC220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
≥60HZ |
|
Refresh Frequency |
≥240HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40°C ~ +85°C Working:-20°C ~ +60°C |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, GB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
|
Control System |
LINSN OR DB-STAR |
|
Software |
LED studio 10.0 |
|
Waterproof Level |
IP65(front side), IP54 (back side) |
|
Installation |
Wall mount, hung and stand structure |
|
Out of Control Rate |
0.01 % |
2. Outdoor LED Display Module
|
Module Size (W*H) |
192mm*192mm |
Pixel Configuration |
1R1G1B |
|
Pixel Pitch |
12mm |
Resolution (W*H) |
16 dots*16 dots |
|
Pixel Density |
6944dots/㎡ |
LED Type |
3mm Oval Lamp |
3. Outdoor LED Display Cabinet
|
Cabinet Size (W*H) |
1152mm*768mm |
Module Qty |
24 pcs |
|
Cabinet Resolution (W*H) |
96 dots*64 dots |
Cabinet Pixel |
6144 |
|
Weight |
40 kg/ Cabinet |
Area |
0.6144㎡ |
|
Average Power Consumption |
350w/㎡ |
Max Consumption |
1000W/m2 |
4. Methods for Quality Assurance
a. Aging
b. Vibration Testing
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
6. Package
Flight case and Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. Front/Rear access Available
2. Reasonable Price, Superior Service.
3. Long Life Span > 100,000 hours
4. Free maintenance service
5. High Quality and High performance
