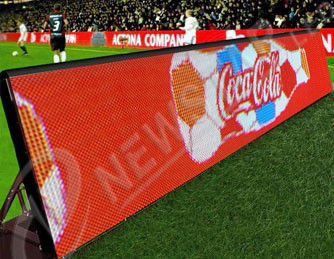

Slim High Brightness Sport Stadium Perimeter Led Display Wide Viewing Angle
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Module Size: | 320*320mm | Cabinet Dimension: | 960*960mm |
|---|---|---|---|
| LED Tube Chip: | Full Color | LED Configuration: | SMD 3 IN 1 |
| Cabinet Material: | Iron | Usage: | Outdoor |
| IP Rating: | IP65 | Warranty: | 2 Years |
| High Light: | stadium led display,perimeter led screen |
||
Slim High Brightness Sport Stadium Perimeter Led Display Wide Viewing Angle
Quick Detail
1. Soft mark used
2. 28°support adjustable
3. High Brightness more than 7000cd/sqm
4. Long lifespan up to 100,000 hours
5. Waterproof and 2 years warranty
6. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION
Competitive Advantage
1. Long Lifespan > 100,000 hours
2. High quality and high performance

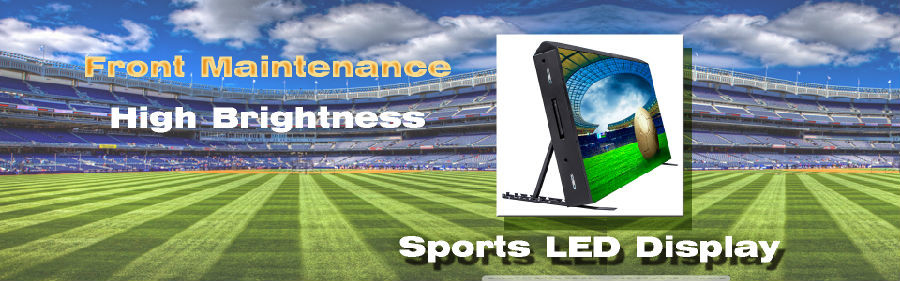

3. Front/Rear access available
4. Reasonable price, superior service.
5. Free maintenance service
Specifications
1. Outdoor LED Display Technical Parameter
| Model No. | NS-OR-DD-P10 |
| Pixel Pitch | 10mm |
| Module Size | 320*320mm |
| Module Resolution (W*H) | 32dots*32dots |
| Pixel Density | 10000 dots/ ㎡ |
| LED Type | 3mm Oval Lamp |
| Pixel Configuration | 1R1G1B |
| Wavelength (R.G.B) | R:625±2nm G:525±2nm B:470±2nm |
| Drive Mode | Dynamic 1/4 Duty Constant Current |
| Cabinet Size | 960×960mm |
| Cabinet Resolution | 96dots×96dots |
| Brightness | ≥7000cd/㎡ |
| Contrast | ≥2000:1 |
| Viewing Angle | 110°(Horizontal )/45°(Vertical ) |
| Best Viewing Distance | 10m-120m |
| Grey Scale | 10bits/1024levels |
| Color Capability | 16777216 |
| Color Temperature | 5000-9300K |
| Maximum Power Consumption | 1000 W/m2 |
| Average Power Consumption | 350 W/m2 |
| Working Voltage | AC 220V/110V s±15% 50-60 HZ |
| Frame Frequency | 60-85 HZ |
| Refresh Frequency | 240 - 1000HZ |
| Brightness Correction | Pixel, Module, Cabinet Correction |
| Operating Temperature | Static:-40℃~+85℃ Working:-20~+65℃ |
| Operating Humidity | 10-90% RH |
| LED Lifespan | 100,000 hours |
| MTBF | ≥50,000 hours |
| Computer Operation System | Win 98/ Win XP/ Win 2000 |
| Video Signal Input | RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
| Video Signal Output | RF, S-Video, RGB, RGBHV, YUV, YC etc. |
| Graphics Card | DVI Graphics Card |
| Control Distance | LINSN / NOVA |
| Software | LED studio 10.0 |
| Waterproof Level | IP65(Front Side), IP54 (Back Side) |
| Installation | Wall mount, hung and stand structure |
| Out of Control Rate |
0.01 % |
2. Outdoor LED Display Module
| Module Size (W*H) | 320mm*320mm | Pixel Configuration | 1R1G1B |
| Pixel Pitch | 10mm | Resolution (W*H) | 32 dots *32dots |
| Pixel Density | 10,000 dots/㎡ | LED Type | 3mm Oval Lamp |
3. Outdoor LED Display Cabinet
| Cabinet Size (W*H) | 960mm* 960mm | Module Qty | 9pcs |
| Cabinet Resolution (W*H) | 96dots *96 dots | Cabinet Pixel | 9,216 |
| Average Power Consumption | 1000w/㎡ | Cabinet Material | Iron |
Applications
Stadium inside and outside such as football, baseball, basketball match etc.
