Home ProductsIndoor SMD LED Display

500X500*75mm Panel Aluminum Die-casting Super Clear Vision Indoor LED Sign

I'm Online Chat Now
Certification
China Shenzhen Newstar Optoelectronics Co., Ltd certification
China Shenzhen Newstar Optoelectronics Co., Ltd certification
Thanks for checking the shipments, good that everything will be delivered today. thank you for your good service!

—— Samir from Netherlands

The display looks good so far! I only have the screen 1 showing but it is bright..

—— Craig Becker from USA

500X500*75mm Panel Aluminum Die-casting Super Clear Vision Indoor LED Sign

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  500X500*75mm Panel Aluminum Die-casting Super Clear Vision Indoor LED Sign Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: Newstar
Certification: CE,ROHS,FCC
Model Number: FS-3/FS-4/FS-5/FS-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 sqm
Price: based on quantity
Packaging Details: flight case/wooden case
Delivery Time: 25-30workdays
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000sqm per month
Detailed Product Description
Material: Aluminum Die-casting Panel Size: 500*500*75mm
Panel Weight: 8kg Module Size: 250*250mm
Grayscale: 65536level Lifespan: 100000hrs At 50%brightness
IP Rating: IP3X Application: Stage,TV Stations,concerts,expo,conferences,live Bars

500X500*75mm Panel Aluminum Die-casting Super Clear Vision Indoor LED Sign

500X500*75mm Panel Aluminum Die-casting Super Clear Vision Indoor LED Sign 0

Specifications



Item Indoor
Fantasy Series 3.91mm 4.81mm 5.682mm 6.25mm
LED Configuration 1R1G1B SMD2020 Black 1R1G1B SMD2020 1R1G1B SMD3528 1R1G1B SMD3528
Module Size 250mm*250mm 250mm*250mm 250mm*250mm 250mm*250mm
Module resolution 64*64dots 52*52dots 44*44dots 40*40dots
Pixel Density 65536picels/m2 43264picels/m2 30976picels/m2 25600picels/m2
Brightness ≧1200cd/m2 ≧1200cd/m2 ≧1200cd/m2 ≧1500cd/m2
Panel Resolution 128*128dots 104*104dots 88*88dots 80*80dots
Power Consumption

Avg:105w/panel

Max:300w/panel

Avg:105w/panel

Max:300w/panel

Avg:105w/panel

Max:300w/panel

Avg:105w/panel

Max:300w/panel

Driving Mode 1/16 1/13 1/11 1/10
Material Aluminum Die-casting
Refresh Rate 2880HZ
Gray Scale 65536level
Viewing Angle(H/V) 140°/140°
Panel Size/Weight 500*500*75mm/8kg
IP Rating IP3X
Operating Temperature -20℃-60℃
Operating Humidity 10%-90%RH
Lifespan 10000hrs at 50% brightness
Control System Novastar/Linsn

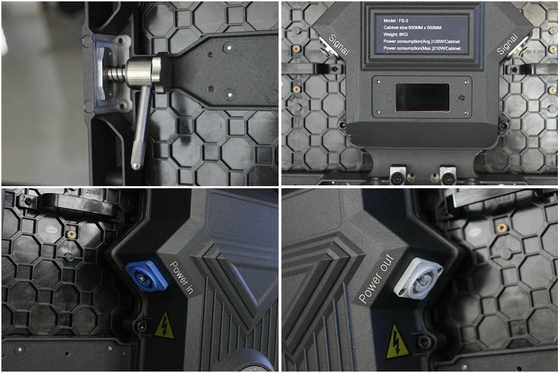

More pictures show the product details



Side lock make the assemble and dismantle more convenient

Label shows the basic product information

500X500*75mm Panel Aluminum Die-casting Super Clear Vision Indoor LED Sign 1

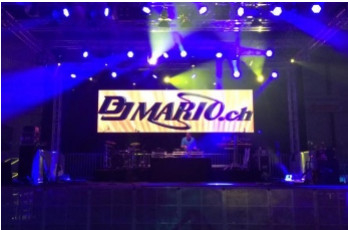

This model are widely used in stage events,TV stations,concerts,and expo events,conferences,live bars,etc.Following image give you a view.Quality is good and the price is moderate,why not try this for your current or future projects?I believe youll receive the most satisfactory goods.

500X500*75mm Panel Aluminum Die-casting Super Clear Vision Indoor LED Sign 2



ABOUT NEWSTAR



wHO are we?

Established in 2008,we are a full color LED screen manufacturing specialist in Shenzhen,China.With years' development,we have worked out many states of the art products for our clients.We're please to help our customers to realize their goals through our LED screen.



What we have?

Over 5000 sq.m2 factory area,hundreds of employees,many high-tech machines to composite production lines,experienced R&D team,etc.



What we offer?

Our products cover infoor,outdoor,curtain and curved LED screens.They can be applied in different situations serving for different purposed accordingly.Besides,we are capable of providing customized solution for clients based on their special requirements.

500X500*75mm Panel Aluminum Die-casting Super Clear Vision Indoor LED Sign 3



Marketing Philosophy

4C:Customer,Cost,Communication,Convenience

4V::Variation,Versatility,Value,Vibration

500X500*75mm Panel Aluminum Die-casting Super Clear Vision Indoor LED Sign 4



Warranty



We offer 2 years' warranty and free replacment or repair to failure from:

1.Module,ventilator,power supply

2.Control system(graphics card,sender,receiver)

3.Cables

4.Software





500X500*75mm Panel Aluminum Die-casting Super Clear Vision Indoor LED Sign 5Any more details,you can skype me,email me or call me.

Skype:kevinsung405_1

Email:Kevin@newstar-led.com

Mobile:008613530871530
