P6.67 slim lightweight Waterproof Led Screen Rental / smd led display for advertising , IP65
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Pixel Pitch: | 6.67 Mm | Pixel Density: | 22,477 Pixels /sq.m |
|---|---|---|---|
| LED Type: | SMD3535 | LED Configuration: | 1R1G1B |
| Refresh Rate: | 2000 Hz | Driving IC: | MBI 5124 |
| Viewing Angle: | 140°/140° | Module Dimension: | 320 Mm X 160 Mm |
| Cabinet Size: | 640 Mm X 640 Mm | Brightness: | 6,500 CD / Sq.m |
| Material: | Die Casting Aluminum | LED Chip: | Epistar |
| Scan Way: | 1/6 | Gray Scale: | 16 Bit |
| IP Rating: | IP65 | Lifespan: | 100,000 H |
| Usage: | Outdoor Rental Led Screen | ||
| High Light: | led billboard advertising,outdoor led advertising signs |
||
P6.67 slim lightweight Waterproof Led Screen Rental / smd led display for advertising , IP65
1. Features
1. Seamless connection and high precision with CNC technology cabinet corner ;
2. Slim and light weight which with only 13Kg/panel and 90mm thickness ;
3. Portable and set-up and dismantle with four fast spring locks on each panel ;
4. High brightness standard , specific waterproof structure design which support its normally using in heavily rains ;
6. Easy to maintain, remove and replace the defect part individually with front Service structure design.

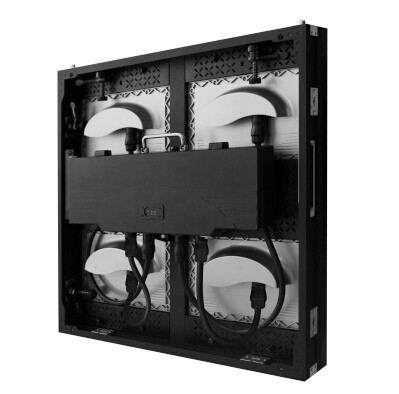

2. Structure of the module in details
3. Technical parameters
| Model No. | MS-6.67 |
| Pixcel pitch | 6.67 mm |
| Pixel density /sq.m | 22,477 pixels |
| LED configuration | 1R1G1B SMD 3535 |
| Module size | 320 mm x 160 mm |
| Cabinet size | 640 mm x 640 mm |
| Panel resolution | 96 x 96 dots |
| Scan way | 1/ 6 |
| Refresh rate | 2000 Hz |
| Panel weight | 16 kg |
| Brightness | 6,500 CD / sq.m |
| Max. power consumption | 370 W/Panel |
| Avg. power consumption | 120 W/ Panel |
| Input voltage | AC 110-220 V (+-5 %) |
| Blind dot rate | ≤0.01% |
| IP rating | IP65 |
| Panel material | Die casting aluminum |
| Working temperature | -20- + 60 ℃ |
| Working humidity | 10-90% RH |
| Driving IC | MBI 5124 |
| Led chip | Epistar |
| Lifetime | 100,000h |
| Control system | Novastar / Linsn |
| Operating system | Windows / Me / 200 NT/XP |
| Minimum viewing distance | 7 m |
| Frame rate | 50 - 60 Hz |
| Certification | CCC , CE, ROHS ,ETL |
4. Packing by flight case
5. Application
Multi-Smart P6.67 rental led display is widely used in outdoor expo events, concerts, presentations, weddings, product promotion events, etc..
