Advertising P5.33 576 x 576 mm Rental LED Display wall Fanless design
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Pixel Pitch: | 5.33 Mm | Pixel Density: | 35,200 Pixels /sq.m |
|---|---|---|---|
| LED Type: | SMD3528 | LED Configuration: | 1R1G1B |
| Refresh Rate: | 1920 Hz | Driving IC: | MBI 5124 |
| Viewing Angle: | 140°/140° | Module Dimension: | 288 Mm X 288 Mm |
| Cabinet Size: | 576 Mm X 576 Mm | Brightness: | 1,200 CD / Sq.m |
| Material: | Die Casting Aluminum | LED Chip: | Epistar |
| Scan Way: | 1/9 | Gray Scale: | 16 Bit |
| IP Rating: | IP31 | Lifespan: | 100,000 H |
| Usage: | Indoor Rental Led Screen | ||
| High Light: | outdoor full color led display,outdoor led video display |
||

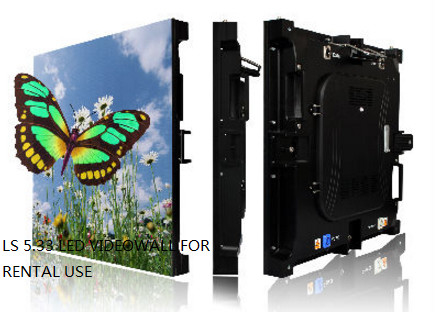

Advertising P5.33 576 x 576 mm Rental LED Display wall Fanless design
1. Features
1. High quality LED chip Epistar brand , support pixel - pixel correction ;
2. Die-casting aluminum panel , ultra thin and lightweight ;
3. Fanless design and noiseless power supply ;
4. SMD technology , wide viewing angle (H >140°H ; V >140°W) and high flatness ;
5. Driving IC MBI 5124 , low brightness and high grey level , high refresh rate ;
6. Fastly built-up and dismantle with fast spring locks on each panel .
2. Cabinet structure in details
3. Technical parameters
| Model No. | LS-5.33 |
| Pixcel pitch | 5.33 mm |
| Pixel density /sq.m | 35,200 pixels |
| LED configuration | 1R1G1B SMD 3528 |
| Module size | 288mm x 288 mm |
| Cabinet size | 576mm x 576mm |
| Panel resolution | 108 x 108 dots |
| Scan way | 1/ 9 |
| Refresh rate | 1,920 Hz |
| Panel weight | 9 kg |
| Brigtness | 1,200 CD / sq.m |
| Max. power consumption | 200 W/Panel |
| Avg. power consumption | 65 W/ Panel |
| Input voltage | AC 110-220 V (+-5 %) |
| Blind dot rate | ≤0.01% |
| IP rating | IP31 |
| Panel material | Die casting aluminum |
| Working temperature | -20- + 60 ℃ |
| Working humidity | 10-90% RH |
| Driving IC | MBI 5124 |
| Led chip | Epistar |
| Lifetime | 100,000h |
| Certification | CCC, CE,ROHS,ETL |
| Control system | Novastar / Linsn |
| Operating system | Windows / Me / 200 NT/XP |
| Minimum viewing distance | 6 m |
| Frame rate | 50 - 60 Hz |
| Certification | CCC , CE, ROHS ,ETL |
4. Packing by flight case
5. Application
It is used in some places where require HD display and fast installation such as Indoor stage , concert , exhibition , etc.
