Convenient HD led rental screen , indoor full color led display for backdrops
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Pixel Pitch: | 5.68 Mm | Pixel Density: | 30,976 Pixels /sq.m |
|---|---|---|---|
| LED Type: | SMD3528 | LED Configuration: | 1R1G1B |
| Refresh Rate: | 2，880 Hz | Driving IC: | MBI 5124 |
| Viewing Angle: | 140°/140° | Module Dimension: | 250mm X 250mm |
| Cabinet Size: | 500mm X 1000mm | Brightness: | 1200 CD / Sq.m |
| Material: | Die Casting Aluminum | LED Chip: | Epistar |
| Scan Way: | 1/11 | Gray Scale: | 16 Bit |
| IP Rating: | IP31 | Lifespan: | 100,000 H |
| Usage: | Indoor Rental LED Display | ||
| High Light: | outdoor rental led display,outdoor led video display |
||
Convenient HD led rental screen , indoor full color led display for backdrops
1.Features
1. Slim panel , Die casting aluminum material ;
2. Front service structure design, you can do maintenance easily ;
3. Black SMD leds with high contrast ratio ,good uniformity ;
4 . High flatness , with 0.1mm tolerance ;
5 . Fast installation and dismantle with fast locks;
6 . High refresh rate with anti-ghost . Adopted the latest Driver IC , eliminates ghost line ; smooth display image is realized shooting with 1920HZ refresh rate ;
9 .Support hanging and Stacking depends on actual requirement .

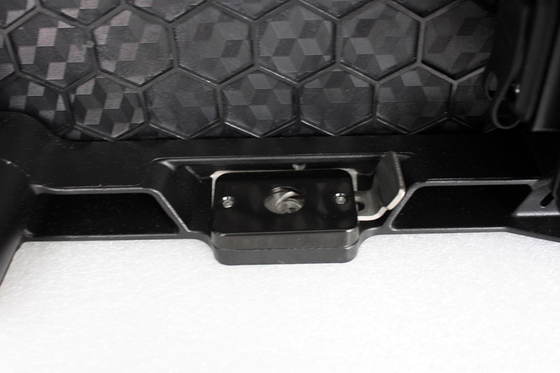

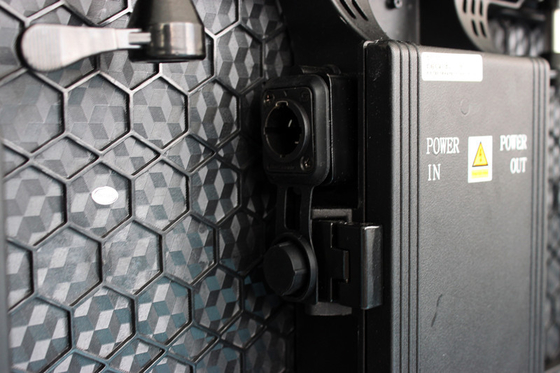

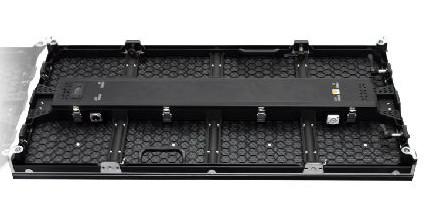

2. Cabinet detailed structure
3. Technical parameters
| Model No. | ES-ID-2- 5.68 |
| Pixcel pitch | 5.68 mm |
| Pixel density /sq.m | 30,976 pixels |
| LED configuration | 1R1G1B SMD3528 |
| Module size | 250 x 250 mm |
| Cabinet size | 500 x 1000 mm |
| Panel resolution | 88 x 176 dots |
| Scan way | 1/11 |
| Refresh rate | 2,880 Hz |
| Panel weight | 13 kg |
| Brigtness | 1200 CD / sq.m |
| Max. power consumption | 300 W/Panel |
| Avg. power consumption | 100 W/ Panel |
| Input voltage | AC 110-220 V (+-5 %) |
| Blind dot rate | ≤0.01% |
| IP rating | IP31 |
| Control system | Novastar/ Linsn |
| Operating system | Windows/me/200NT/XP |
| Working humidity | 10-90% RH |
| MTBF | 35,000 h |
| Lifetime | 100,000 h |
| Led chip | Epistar |
| Driving IC | MBI 5124 |
| Panel material | Die casting aluminum |
| Frame rate | 50-60 Hz |
4. Packaging by flight cases

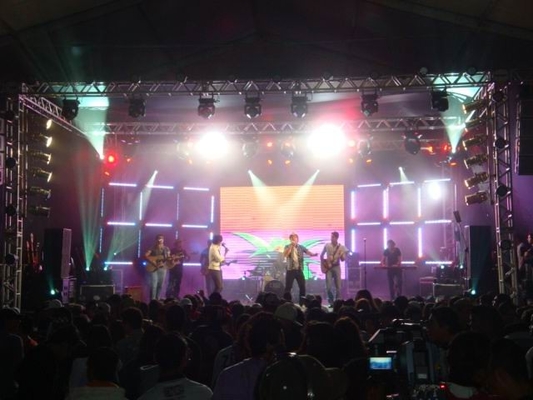

5. Application
Epoch series ES-ID-2- 5.68 rental led display is widely used for stage background at all kinds of live shows , concerts.
