Product Details:
Payment & Shipping Terms:
|
Pixel Pitch: | 3.91mm | Pixel Density: | 65,536 Pixels /sq.m |
---|---|---|---|
LED Type: | SMD2020 Black Leds | LED Configuration: | 1R1G1B |
Refresh Rate: | 2,880 Hz | Driving IC: | MBI 5124 |
Viewing Angle: | 140°/140° | Module Dimension: | 250mm X 250mm |
Cabinet Size: | 500mm X 500mm | Brightness: | 1200 CD / Sq.m |
Material: | Die Casting Aluminum | LED Chip: | Epistar |
Scan Way: | 1/16 | Gray Scale: | 16 Bit |
IP Rating: | IP31 | Lifespan: | 100,000 H |
Usage: | Indoor Rental LED Display | ||
High Light: | outdoor full color led display,outdoor led video display |

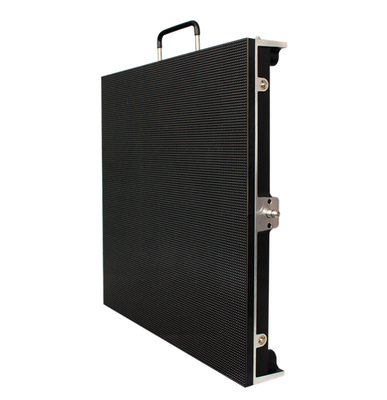

Slim and light panel Epoch series P3.91 indoor HD rental LED Display
Epoch series-I is an high quality professional stage rental events led display ; With commonatly module design of different pixel pitch eable us to replace and not need to buy a new cabinet, which can be cost saving.
1.Features
1. Die casting aluminum structure, high-precision processing technology and good heat dissipation;
2. Ultra thin and light weight which with only 8 Kg/panel and 75mm thickness;

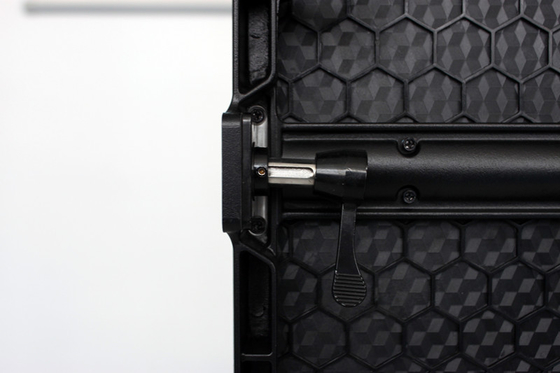

3. Portable, and easy to set-up and dismantle with four fast locks on each panel;
4. High screen flatness, location accuracy and seamless connection;
5. Easy to maintain, remove and replace the defect part individually.

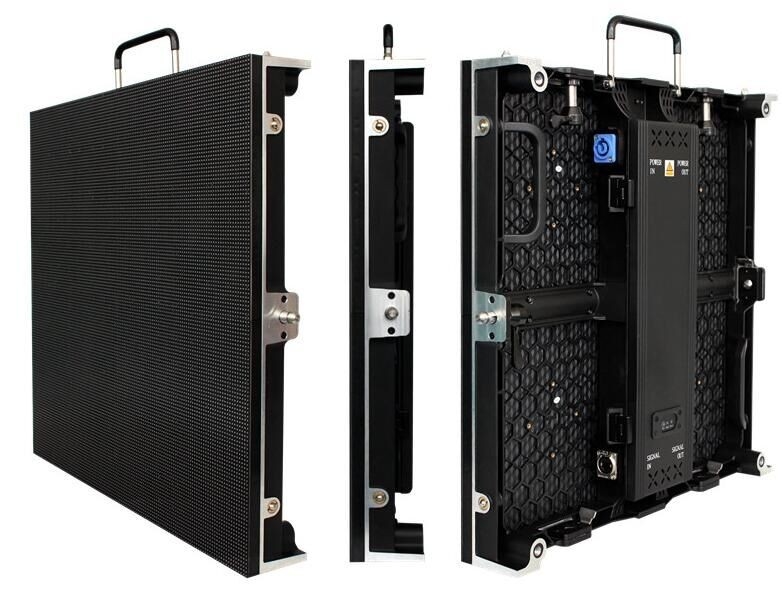

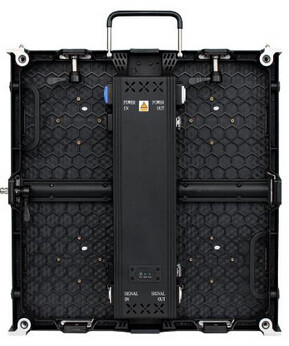

2. Cabinet detailed structure
3. Technical parameters
Model No. | ES-3.91 |
Pixcel pitch | 3.91 mm |
Pixel density /sq.m | 65,536 pixels |
LED configuration | 1R1G1B SMD 2020 black leds |
Module size | 250 x 250 mm |
Cabinet size | 500 x 500 mm |
Panel resolution | 128 x 128 dots |
Scan way | 1/16 |
Refresh rate | 2,880 Hz |
Panel weight | 8 kg |
Brigtness | 1200 CD / sq.m |
Max. power consumption | 300 W/Panel |
Avg. power consumption | 105 W/ Panel |
Input voltage | AC 110-220 V (+-5 %) |
Blind dot rate | ≤0.01% |
IP rating | IP31 |
Control system | Novastar/ Linsn |
Operating system | Windows/me/200NT/XP |
Working humidity | 10-90% RH |
MTBF | 35,000 h |
Lifetime | 100,000 h |
4. Packaging by flight cases

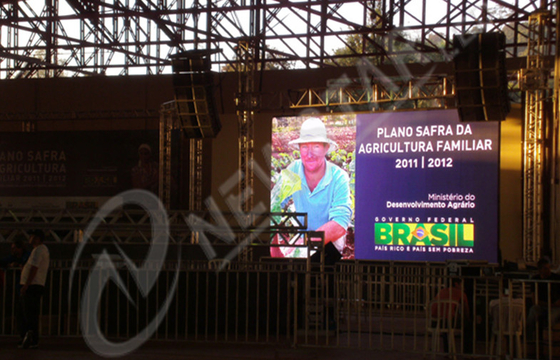

5. Application
Because of its excellent display quality, slim and light body, Epoch Series Rental LED Displays are widely used in stage rental events, Exhibitions, Car Show, Shopping Mall, TV station, Bar, Presentations, weddings, etc.
