P16 Stadium Perimeter LED Display DIP Full color LED Screen for Sports

small.img.alt small.img.alt

Large Image :  P16 Stadium Perimeter LED Display DIP Full color LED Screen for Sports Get Best Price

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Newstar-LED
Certification: CE, RoHS, UL, FCC, ISO
Model Number: NS-OR-DD-P16
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc/ 1 sqm.
Price: US $1,000-2,000 /sqm.
Packaging Details: Flight case /Fumigation-Free wooden case
Delivery Time: 8-25days after received the payment
Payment Terms: T/T
Supply Ability: 2000 Square Meter/Month
Detailed Product Description
High Light:

sports perimeter led display


stadium led display


P16 Stadium Perimeter LED Display , DIP Full color LED Screen for Sports



Quick Detail:


1. 28°support adjustable

2. Waterproof and 2 years warranty

3. High Brightness more than 8000cd/sqm

4. Long lifespan up to 100,000 hours

5. Soft mark used

6. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION.





1. High Brightness

More than 8000nits and it can be sawn from long distance.

2. Soft Mask

Soft mask design delivers good protection to the players and also decreases damage to LEDs.

3. Adjustable support and quick rigging system

Flexible support design makes LED panel lean by multi angles to cater audience’s needs and quick rigging system design makes the installation and dismantle easier and faster.

4. Cost Effective LED display

16mm not only delivers enough resolution but also decrease the cost comparing with 10mm and 12mm.
5. Waterproof and 2 Year Warranty

Water Proof IP65 and 2 year warranty. LED display can work in all-weather condition very well.

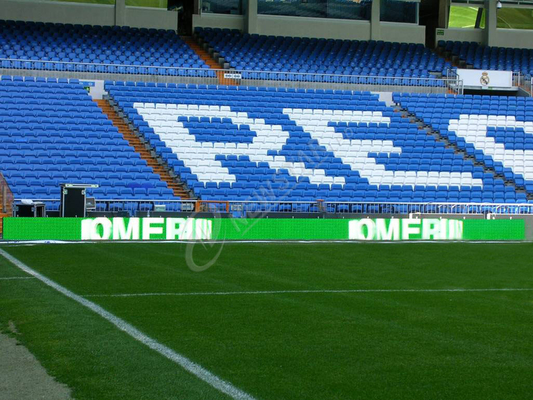

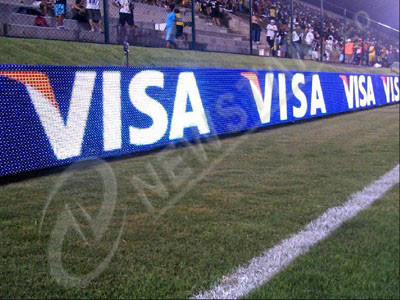

Stadium inside and outside such as football pitch, baseball, basketball etc





1. Outdoor LED Display Technical Parameter

Model  No.


Pixel Pitch


Module Size


Module Resolution(dots)


Panel Size

1024mm ×1024mm

Panel Resolution(dots)

64 ×64

Pixel Configuration(RGB)


Pixel Density(dots/m2)



≥ 8,000

Best Viewing Distance(m)


Max. Power Consumption(W/m2)


Drive  Mode

Static Constant current


R  620-625  G 520-525 B 470-475

Viewing    Angle


Operating   Temperature


Video Frame Rate(Hz)

≥ 60HZ

Display  Refresh Rate(Hz)

≥ 300HZ

Grey  Level(colors)


Life Span

≥100,000 hours

Working Voltage

220V±15% OR 110V±15%

Video Signal Input


Control System



2. Outdoor LED Display Module

Module Size (W*H)


Pixel Configuration


Pixel Pitch


     Resolution (W*H)

16 dots*16 dots

Pixel Density

3,906 dots/㎡

LED Type

3mm Oval Lamp


3. Outdoor LED Display Cabinet

Cabinet Size (W*H)

1024mm *1024mm

Module Qty

16 pcs

  Cabinet Resolution (W*H)

64dots *64 dots

Cabinet Pixel


Average Power Consumption


Max Consumption



4. Methods for Quality Assurance

a. Aging


b. Vibration Testing


5. Factory Equipment


Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.


6. Package

Flight case and Fumigation-Free wooden case


7. Control System Connection


8. Competitive Advantage:

1. 24/7 Online support service

2. Free onsite maintenance / Year

3. Solution design

4. Free online training any time

5. High quality raw material used like neutrik flight connector, MBI IC etc.
