P10 DIP Flexible LED Display Waterproof IP65 led screen with Wall Mount

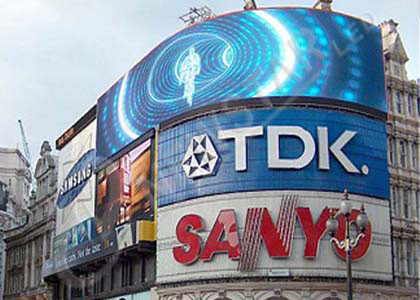

Large Image : P10 DIP Flexible LED Display Waterproof IP65 led screen with Wall Mount Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	NS-OR-DD-P10

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $1,000-2,000 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	8-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Month

Contact Now

Detailed Product Description

High Light:

flexible led signs

flexible led screen

P10 DIP Flexible LED Display , Waterproof IP65 led screen with Wall Mount

Quick Detail:

1. IP65 Ruggedness, all-weather qualified

2. High brightness: >7,000cd/㎡

3. Long lifespan up to 100,000 hours

4. ≤1mm surface level up, smooth video

5. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION

6. Perfect quality and stability, 24/7 running

Description:

1. Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light.

2. Big viewing angle to 110 degree at horizontal line, 45 degree at vertical line, you can see at every angle,at this range, no picture change, no color excursion;

3. High intensity and can be adjusted, so can meet the request of the customers according the application

environment;

4. To pictures and character, have clear, exquisite and real display effect;

5. Can repair each led lamps, so the cost of maintain is lower, and easy to repair.

Applications:

Our products have been widely used in venues as banks, stock exchange centers, schools,

telecommunications, customs, stadiums, studio, shopping malls, railways, airports, harbors, city squares,

courts, schools, restaurants etc;

Specifications:

1. Outdoor LED Display Technical Parameter

Model No.	NS-OR-DD-P10
Pixel Pitch	10mm
Module Size	160mm *160mm
Module Resolution (W*H)	16 dots *16 dots
Pixel Density	10,000 dots/ ㎡
LED Type	3mm Oval Lamp
Pixel Configuration	1R1G1B
Wavelength (R.G.B)	R:625±2nm G:525±2nm B:470±2nm
Drive Mode	Dynamic 1/4 Duty Constant Current
Cabinet Size	960 ×960mm
Cabinet Resolution	96dots ×96dots
Brightness	≥ 7,000cd/㎡
Contrast	≥2000:1
Viewing Angle	110°(Horizontal )/45°(Vertical )
Best Viewing Distance	10m-300m
Grey Scale	10bits/1024levels
Color Capability	16,777,216
Color Temperature	5000-9300K
Average Power Consumption	1000 W/㎡
Working Voltage	AC 220V/110V s±15% 50-60 HZ
Frame Frequency	60-85 HZ
Refresh Frequency	240 - 1000HZ
Brightness Correction	Pixel, Module, Cabinet Correction
Operating Temperature	Static:-40℃~+85℃Working:-20~+65℃
Operating Humidity	10-90% RH
LED Lifespan	100,000 hours
MTBF	≥50,000 hours
Computer Operation System	Win 98/ Win XP/ Win 2000
Video Signal Input	RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite
Video Signal Output	RF, S-Video, RGB, RGBHV, YUV, YC etc.
Graphics Card	DVI Graphics Card
Control Distance	LINSN / NOVA / DB-STAR
Software	LED studio 10.0
Waterproof Level	IP65(Front Side), IP54 (Back Side)
Installation	Wall mount, hung and stand structure
Out of Control Rate	0.01 %

2. Outdoor LED Display Module

Module Size (W*H)	160mm*160mm	Pixel Configuration	1R1G1B
Pixel Pitch	10mm	Resolution (W*H)	16 dots*16 dots
Pixel Density	10,000 dots/㎡	LED Type	3mm Oval Lamp

3. Outdoor LED Display Cabinet

Cabinet Size (W*H)	960mm *960mm	Module Qty	36 pcs
Cabinet Resolution (W*H)	96 dots *96 dots	Cabinet Pixel	9,216
Average Power Consumption	1000w/㎡	Material	Aluminum

4. Methods for Quality Assurance

a. Aging

1. 100% fully test

2. Condition: 72 hours with 256 grey level

b. Vibration Testing

Condition: 3-5 mins up and down in 5mm range

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

8. Competitive Advantage:

1. High Quality and High performance

2. Long Life Span

3. High Cost Effective

4. Free maintenance service

5. Front/Rear access Available
