High Resolution P20 Outdoor LED Signs 2500dots/㎡ advertising LED display

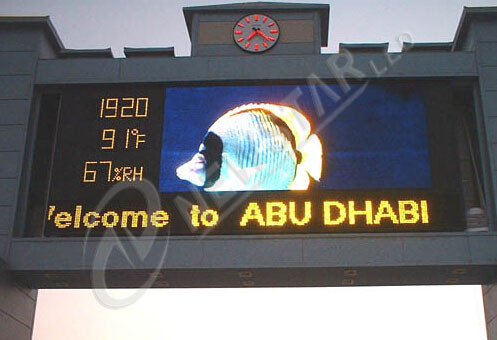

Large Image : High Resolution P20 Outdoor LED Signs 2500dots/㎡ advertising LED display Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	NS-OR-DD-P20

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $800-1,000 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	20-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Square Meters per Month

Contact Now

Detailed Product Description

High Light:

Portable Led Signs

Outdoor LED Signs

High Resolution P20 Outdoor LED Signs 2500dots/㎡ advertising LED display

Quick Detail:

1. Stand pole installation.

2. 24 months warranty and lifelong free tech-support.

3. Excellent contrast ratio, high resolution/high definition.

4. CE&RoHS certificate.

5. Waterproof IP65.

6. Brightness(cd/m²)≥ 6500.

Description:

1. Durable fresh color and High brightness

65536 grey scale and the 281 billions color and more than 1200 HZ refresh rate ensure wonderful video

color presentation.

2. Energy Saving

Adopt high-brightness LED with low consumption and 90% efficiency power supply saving 20% power

energy.

3. Stability and reliability

Precise manufacturing process keeps the modules rugged and durable.

Applications:

Outdoor full color digital billboards are very popular in LED display advertising field. This type digital

billboards are widely used Outdoor plaza,Outdoor building,stadium,shopping mall,crossroad,

highway,airport etc;

Specifications:

1. Outdoor LED Display Technical Parameter

Model No.	NS-OR-DD-P20
Pixel Pitch	20mm
Module Size	320mm ×160mm
Module Resolution(dots)	16 *8
Panel Size	1280mm × 960mm
Panel Resolution(dots)	64 × 48
Pixel Configuration(RGB)	1R1G1B
Pixel Density(dots/m²)	2,500
Brightness(cd/m²)	≥ 6,500
Best Viewing Distance(m)	15-300
Avg. Power Consumption(W/m²)	800
Drive Mode	Static Constant Current
Wavelength	R 620-625 G 520-525 B 470-475
Viewing Angle	110°(H)/45°(V)
Operating Temperature	–20~60°C
Video Frame Rate(Hz)	≥60HZ
Display Refresh Rate(Hz)	≥300HZ
Grey Level(colors)	16.7million
Lifespan	≥100,000 hours
Working Voltage	220V±15% OR 110V±15%
Video Signal Input	RF,S-Video, RGB,RGBHV,YUV,YC,COMPOSITION
Control System	LINSN OR DB-STAR

2. Outdoor LED Display Module

Module Size (W*H)	320mm*160mm	Pixel Configuration	1R1G1B
Pixel Pitch	20mm	Resolution (W*H)	16 dots*8 dots
Pixel Density	2,500 dots/㎡	LED Type	3mm Oval Lamp

3. Outdoor LED Display Cabinet

Cabinet Size (W*H)	1280mm* 960mm	Module Qty	24 pcs
Cabinet Resolution (W*H)	64dots *48 dots	Cabinet Pixel	3,072
Cabinet Material	Aluminum	Area	0.6144㎡
Average Power Consumption	800w/㎡	Max Consumption	1000W/㎡

4. Methods for Quality Assurance

a. Aging

b. Vibration Testing

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

8. Competitive Advantage:

1. Long Lifespan > 100,000 hours

2. High quality and high performance

3. Front/Rear access available

4. Reasonable price, superior service.

5. Free maintenance service
