Full Color P4 Indoor SMD Video Wall Led Display Screen , High Resolution

Large Image : Full Color P4 Indoor SMD Video Wall Led Display Screen , High Resolution Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	LS-4

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $1,000-3,000 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	8-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Month

Contact Now

Detailed Product Description

High Light:

led advertising displays

led wall display screen

Full Color P4 Indoor SMD Video Wall Led Display Screen , High Resolution

Quick Detail:

1. Super uniformity and without mosaic

2. Perfect contrast ratio, high resolution/high definition

3. Available Item: P3.84mm, P4mm,P4.8mm, P5.33mm, P6mm.

4. Light weight and can be installed by one person

5. One Cabinet only weights 9KG

6. Cabinet material: Aluminum

Description:

1. Slim Design

One cabinet size is 576 x576 x 83mm

2. Fast Assembly

One person can install at least 70 cabinets per hour without tools.

3. Light Weight

One Cabinet only weights 9KG, 34KG for one square meter.

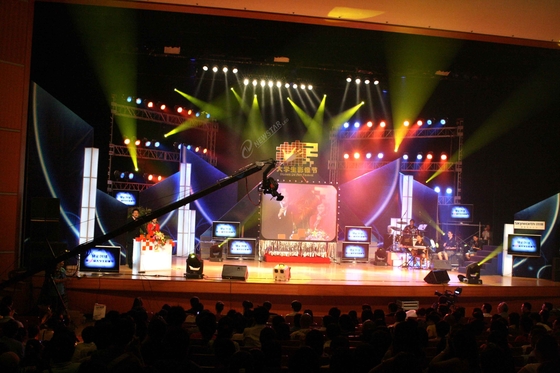

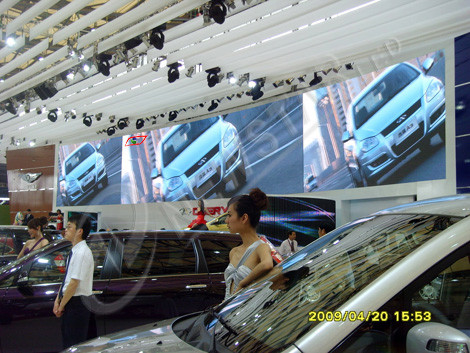

Applications:

Commercial advertising, mobile media, night club, entertainment events, business establishments, such as

banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,

shopping malls, railways, airports, harbors, etc;

Specifications:

1. Indoor LED Display Technical Parameter

Model No.	LS4
Pixel Pitch	4mm
Module Size	288*288mm
Module Resolution(pixels)	72*72
Panel Size	576mm×576mm
Panel Resolution(pixels)	144×144
Pixel Configuration(RGB)	1R1G1B
Pixel Density(pixels/m2)	62,500
Brightness(cdm2)	2,000
Best Viewing Distance(m)	6-100
Max.Power Consumption(W/m2)	900
Waterproof Level	IP21
wavelength	R 620-625 G 520-525 B 470-475
LED SPEC	2020
Viewing Angle	140°(H)/140°(V)
Operating Temperature	–40~60°C
Video Frame Rate(Hz)	≥60HZ
Display Refresh Rate(Hz)	≥300HZ
Grey Level(colors)	16.7million
MTBF	≥50,000 hours
Lifespan	≥100,000Hours
Working Voltage	220V±15% OR 110V±15%
Drive Mode	Constant 1/18
Graphics Card	DVI Graphics card
Video Signal	RF, S-Video, RGB, RGBHV, YUV, YC, etc.
Control System	LINSN
Software	LED studio 10.0
Installation	Wall mount, hung and stand structure

2. Indoor LED Display Module

Dimensions (w x h)	288mmx288mm	Resolution (w x h)	72 x72
Pixel pitch	4mm	Pixel Density	62,500/㎡
Pixel Configuration	1R1G1B 3 IN 1	LED Type	2020 black LED

3. Indoor LED Display Cabinet

Dimensions(w x h x d)(mm)	576x576x83	Module Quantity	4
Physical Resolution (w x h)	144 x 144	Physical Pixels (total)	20,736
Weight/Panel (kgs)	9	Material	Die casting Aluminum
Average Power/sqm (watts)	330	Max Power/sqm(watts)	900

4. Methods for Quality Assurance

a. Aging

1. 100% fully test

2. Condition: 72 hours with 256 grey level

b. Vibration Testing

Condition: 3-5 mins up and down in 5mm range

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

8. Competitive Advantage:

1. 2 years’ warranty with free repair service

2. 24/7 Hours online remote support

3. Solution and PCB design

4. Free factory training

5. Onsite installation instruction and regular inspection
