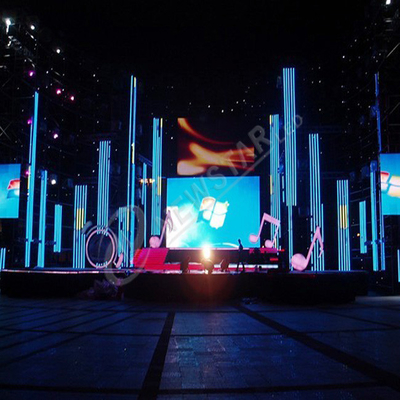

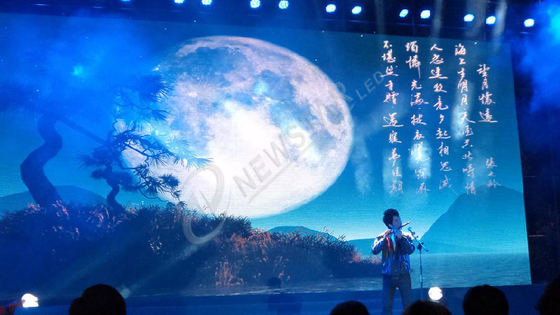

Waterproof Large Indoor HD LED Display Board , Stage Background Led Screen IP21

Large Image : Waterproof Large Indoor HD LED Display Board , Stage Background Led Screen IP21 Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	BS-3

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $1,000-3,000 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	8-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Month

Contact Now

Detailed Product Description

High Light:

High Definition LED display

led display boards

Waterproof Large Indoor HD LED Display Board , Stage Background Led Screen IP21

Quick Detail:

1. Excellent contrast ratio, high resolution/high definition

2. Great uniformity and without mosaic

3. Available models: P3.91, P4.46, P5.2, P6.25.

4. Light weight and convenient to install

5. Waterproof Level: IP21

6. Longer lifespan: more than 100,000 hours life

Description:

1. Slim Design

One cabinet size is 500 x 500 x 85mm

2. Easy Installation

No tools required, one person can install at least 70 cabinets per hour. One person can finish the whole

process alone.

3. Light Weight

One Cabinet only weights 8.5KG, 34KG for one square meter.

4. Die Casting Materials

light weight, good appearance, anti-corrosiveness

Applications:

Commercial advertising, mobile media, night club, entertainment events, business establishments, such as

banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,

shopping malls, railways, airports, harbors, etc;

Specifications:

1. Indoor LED Display Technical Parameter

Model No.	BS-3
Pixel Pitch	3.91mm
Module Size	250*250mm
Module Resolution(pixels)	64*64
Panel Size	500mm×500mm
Panel Resolution(pixels)	128×128
Pixel Configuration(RGB)	1R1G1B
Pixel Density(pixels/m2)	65,536
Brightness(cd/m2)	>1500
Best Viewing Distance(m)	6-100
Max.Power Consumption(W/m2)	800
Waterproof Level	IP21
Wavelength	R 620-625 G 520-525 B 470-475
LED SPEC	2020
Viewing Angle	140°(H)/140°(V)
Operating Temperature	–40~60°C
Video Frame Rate(Hz)	≥60HZ
Display Refresh Rate(Hz)	1,500HZ
Grey Level(colors)	16.7million
MTBF	≥50,000 hours
Lifespan	≥100,000Hours
Working Voltage	220V±15% OR 110V±15%
Drive Mode	Constant 1/16
Graphics Card	DVI Graphics card
Video Signal	RF, S-Video, RGB, RGBHV, YUV, YC, etc.
Control System	LINSN
Software	LED studio 10.0
Installation	Wall mount, hung and stand structure

2. Indoor LED Display Module

Dimensions (w x h)	250mmx250mm	Resolution (w x h)	64 x 64
Pixel pitch	3.91mm	Pixel Density	65,536/㎡
Pixel Configuration	1R1G1B 3 IN 1	LED Type	2020 black LED

3. Indoor LED Display Cabinet

Dimensions(w x h x d)(mm)	500x500x85	Module Quantity	4pcs
Physical Resolution (w x h)	128 x 128	Physical Pixels (total)	16,384
Weight/Panel (kgs)	7.5	Material	Die-casting Aluminum
Average Power/sqm (watts)	330	Max Power/sqm(watts)	90

4. Methods for Quality Assurance

a.Aging

1. 100% fully test

2. Condition: 72 hours with 256 grey level

b. Vibration Testing

Condition: 3-5 mins up and down in 5mm range

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

8. Competitive Advantage:

1. 2 years’ warranty with free repair service

2. 24/7 Hours online remote support

3. Solution and PCB design

4. Free factory training

5. Onsite installation instruction and regular inspection
