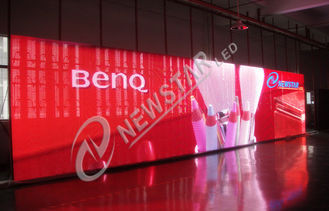

Waterproof Rental HD LED Display Wedding Led Dance Floor Screen , Aluminum Cabinet


Large Image :  Waterproof Rental HD LED Display Wedding Led Dance Floor Screen , Aluminum Cabinet Get Best Price

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Newstar-LED
Certification: CE, RoHS, UL, FCC, ISO
Model Number: WS-15
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc/ 1 sqm.
Price: Negotiable
Packaging Details: Flight case /Fumigation-Free wooden case
Delivery Time: 8-25days after received the payment
Payment Terms: T/T
Supply Ability: 2000 Square Meter/Month
Detailed Product Description
High Light:

High Definition LED display


high resolution led screen

Waterproof Rental HD LED Display Wedding Led Dance Floor Screen , Aluminum Cabinet



Quick Detail:


1. Special cabinet design, cooling fast

2. Wonderful product especially for stage use.

3. Available models: P7.81, P10.417, P12.5, P15.625.

4. Package with flight case, easy to move.

5. No tools needed, can be installed with 1 person.

6.Cabinet material Aluminum





1. Fast lock design help to fast install

 No tools needed, can be installed with 1 person.

2. Slim Design

One cabinet size is 500 x 500 x 95mm

3. Can adjust the screen be curved

Panel connection angle can be adjusted by -15 degree to +15 degree. This allows arc shape available.




Live broadcast: Gym, Stadium, Concert, Sport match, Competition, Gov publication etc.

Rental business: Entertainment, Wedding, Party etc.




1. LED Curtain Technical Parameter


≥6,000 nit

 Color temperature

6500/9000 K

 Viewing angle-H

140 (+70/-70) deg.

 Viewing angle-V

140 (+70/-70) deg.

 Cabinet weight

8 kg

 Cabinet size (W×H×D)

500×500×95 mm

 Cabinet area

0.5 sqm.

 Cabinet material


 Ingress protection (Front/Rear)


 Operating temperature

–40~+60 degree

 Operating humidity

10%~ 90%

 Pixel configuration


 Pixel pitch

15.625 mm

Module size

500x62.5 mm

Pixel matrix per module

32x4 dots

Pixel matrix per cabinet

32x32 dots

 Pixels per cabinet

1,024 dots

 Pixels per sq.m.

4,096 dots

 Minimum viewing distance

10 m

 Gray scale

4096 level

 Brightness control

256 level

 Refresh frequency

> 2000 Hz

 Driving mode

Static constant current driving

 Input voltage (AC)

100 ~ 240 V

 Input power frequency

50  or  60 Hz

 Power consumption per sq.m. (max/avg)

800/300 W

 Blind spot rate


 Lifetime at 50% brightness

100,000 hours

 Red wavelength (Typical)

623 nm

 Green wavelength (Typical)

523 nm

 Blue wavelength (Typical)

475 nm

 Signal input format
(with video processor)

AV, S-Video, VGA, DVI, YPbPr,

 Operating system

Windows (2000/XP/Vista)

 Control distance

CAT5 cable <100 m
Single fiber <10 km



2.  LED Curtain Cabinet

Dimensions(w x h x d)(mm)


Cabinet area

0.25 sqm.

Physical Resolution (w x h)


Physical Pixels (total)


Weight/Panel (kgs)




Average Power/sqm (watts)


Max Power/sqm(watts)



3.Methods for Quality Assurance

a. Aging

1. 100% fully test

2. Condition: 72 hours with 256 grey level


b. Vibration Testing

Condition: 3-5 mins up and down in 5mm range


4. Factory Equipment


Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.


5. Package

Flight case and Fumigation-Free wooden case


6. Control System Connection


7. Competitive Advantage:

1. 2 years’ warranty with free repair service

2. 24/7 Hours online remote support

3. Solution and PCB design

4. Free factory training

5. Onsite installation instruction and regular inspection
