Flexible Advertising LED Display For Stadium Perimeter

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Flexible Advertising LED Display For Stadium Perimeter Get Best Price

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Newstar-LED
Certification: CE, RoHS, UL, FCC, ISO
Model Number: NS-OR-DD-P12
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc/ 1 sqm.
Price: US $1,000-2,000 /sqm.
Packaging Details: Flight case /Fumigation-Free wooden case
Delivery Time: 8-25days after received the payment
Payment Terms: T/T
Supply Ability: 2000 Square Meter/Month
Detailed Product Description
LED Type: 3mm Oval Lamp Pixel Configuration: 1R1G1B
Pixel Pitch: 12mm Product Name: Stadium Perimeter Led Display/sports Perimeter Led Display
Protection Ratings: IP65(Front Side );IP54(Back Side) Tube Chip Color: Full Color
High Light:

stadium led display

,

perimeter led screen



Quick Detail:



1. High Brightness more than 5800cd/sqm

2. Soft mark used

3. Adjustable and flexible support

4. High definition and quick rigging system design

5. Waterproof and 2 years warranty



Flexible P12 Outdoor Advertising LED Display Signs For Stadium Perimeter , 5800cd/sqm



Description:



1. High Brightness

High brightness delivers clear pictures and text to audience in a far distance

2. Soft Mask

Soft mask design delivers good protection to the players and also decreases damage to LEDs.

3. Adjustable support and quick rigging system

Flexible support design makes LED panel lean by multi angles to cater audience’s needs and quick rigging

system design makes the installation and dismantle easier and faster.

4. High Quality and Reliability

Our many outdoor screens have been used by our clients around the world for 3-5 years and rarely

product issues are called.

5. Waterproof and 2 Years’ Warranty

Water Proof IP65 and 2 year warranty. LED display can work in all-weather condition very well.


Applications:

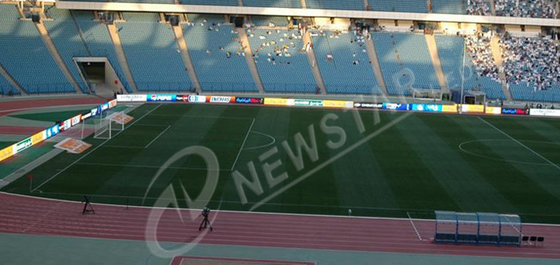

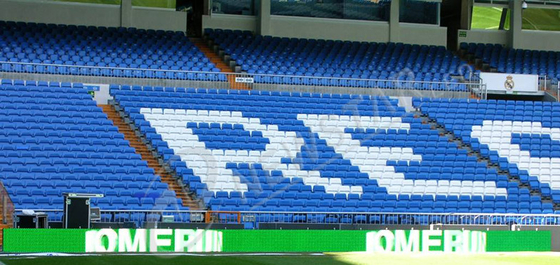

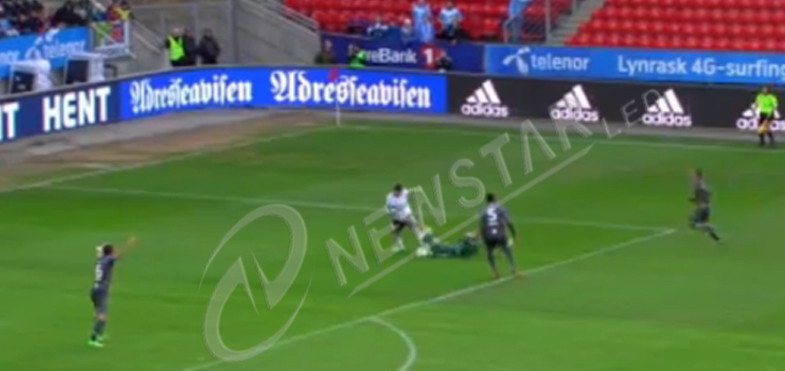

Stadium inside and outside such as football pitch, baseball, basketball etc



Specifications:



1. Outdoor LED Display Module

Module Size (W*H)

192mm*96mm

Pixel Configuration

1R1G1B

Pixel Pitch

12mm

     Resolution (W*H)

16 dots*8 dots

Pixel Density

6944 dots/㎡

LED Type

3mm Oval Lamp

Flexible Advertising LED Display For Stadium Perimeter 0

2. Outdoor LED Display Cabinet

Cabinet Size (W*H)

960mm*768mm

Module Qty

40pcs

  Cabinet Resolution (W*H)

80 dots*64 dots

Cabinet Pixel

5120

Weight

40 kg/ Cabinet

Area

0.737㎡

Average Power Consumption

300w/㎡

Max Consumption

1000 W/m2

Flexible Advertising LED Display For Stadium Perimeter 1

3. Methods for Quality Assurance

a. Aging

1. 100% fully test

2. Condition: 72 hours with 256 grey level

Flexible Advertising LED Display For Stadium Perimeter 2

b. Vibration Testing

Condition: 3-5 mins up and down in 5mm range


Flexible Advertising LED Display For Stadium Perimeter 3



4. Outdoor LED Display Technical Parameter

Model No.

NS-OR-DD-P12

Pixel Pitch

12mm

Module Size

192mm*96mm

Module Resolution (W*H)

16 dots*8dots

Pixel Density

6944 dots/ ㎡

LED Type

3mm Oval Lamp

Pixel Configuration

1R1G1B

Wavelength (R.G.B)

R:625±2nm G:525±2nm B:470±2nm

Drive Mode

Dynamic 1/4 Duty Constant Current

Cabinet Size

960×768×150mm

Cabinet Resolution

80dots×64dots

Brightness

≥5800cd/㎡

Contrast

≥4000:1

Viewing Angle

110°(Horizontal )/45°(Vertical )

Best Viewing Distance

10m-300m

Grey Scale

10bits/1024levels

Color Capability

16777216

Color Temperature

5000-9300K

Maximum Power Consumption

1000 W/m2

Average Power Consumption

350 W/m2

Working Voltage

AC 220V/110V s±15% 50-60 HZ

Frame Frequency

60-85 HZ

Refresh Frequency

240 - 1000HZ

Brightness Correction

Pixel, Module, Cabinet Correction

Operating Temperature

Static:-40℃~+85℃Working:-20~+65℃

Operating Humidity

10-90% RH

LED Lifespan

100,000 hours

MTBF

≥50,000 hours

Computer Operation System

Win 98/ Win XP/ Win 2000

Video Signal Input

RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite

Video Signal Output

RF, S-Video, RGB, RGBHV, YUV, YC etc.

Graphics Card

DVI Graphics Card

Control Distance

LINSN / NOVA / DB-STAR

Software

LED studio 10.0

Waterproof Level

IP65(Front Side), IP54 (Back Side

Installation

Wall mount, hung and stand structure

Out of Control Rate

0.01 %



5. Factory Equipment

Flexible Advertising LED Display For Stadium Perimeter 4



6. Package

Flight case and Fumigation-Free wooden case

Flexible Advertising LED Display For Stadium Perimeter 5



7. Control System Connection

Flexible Advertising LED Display For Stadium Perimeter 6



8. Competitive Advantage:

1. 24/7 Online support service

2. Free onsite maintenance / Year

3. Solution design

4. Free online training any time

5. High quality raw material used like neutrik flight connector, MBI IC etc.
