High Resolution Outdoor LED Display for Advertising IP65

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  High Resolution Outdoor LED Display for Advertising IP65 Get Best Price

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Newstar-LED
Certification: CE, RoHS, UL, FCC, ISO
Model Number: NS-OR-DD-P10
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc/ 1 sqm.
Price: US $1,000-2,000 /sqm.
Packaging Details: Flight case /Fumigation-Free wooden case
Delivery Time: 8-25days after received the payment
Payment Terms: T/T
Supply Ability: 2000 Square Meter/Month
Detailed Product Description
Tube Chip Color: Full Color Pixel Configuration: 1R1G1B
Pixel Pitch: 10mm Product Name: Full Color Outdoor Advertising Led Display/advertising Led Display
Protection Ratings: IP65(Front Side );IP54(Back Side) Use: Outdoor
High Light:

outdoor led advertising signs

,

outdoor advertising led screen



Quick Detail:



1. Waterproof Level: IP54 (Back Side), IP65 (Front Side).

2. High refresh rate: static scan up to 4000Hz/s, 1/4 scan up to 1200Hz /s.

3. Long lifespan> 100,000 hours

4. CE, CCC, RoHS qualified.



High Resolution P10 Outdoor LED Display for Advertising  IP65 110°(H)/45°(V)



Description:



1. High Contrast

Newstar outdoor LED screens enable to deliver sharp visual effects to our audience.

2. Seamless Design

It eliminates the gap between the module and cabinet making LED screen much more even.

3. Comprehensive Application

It can be used in different suitations for mulit purposes such as lease market, advertisement, stadium,

shopmall etc.

4. High Quality and Reliability

Our many outdoor screen have been fixed around the world for 3-5 years and no product issues called.

5. Uniform performance

Newstar always insists using same batch of high quality lamps to make LED screen. Therefore, the LED

screen looks more uniform. No need to do dot correct.



Applications:

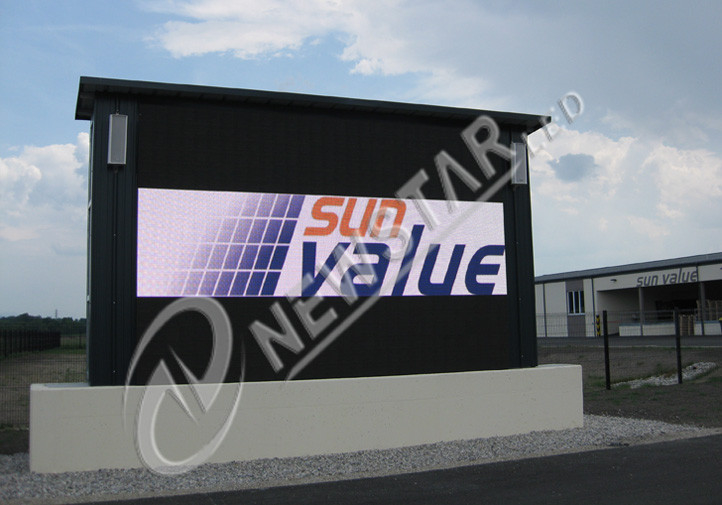

Commercial advertising: Square, Road side, High way, Airport, Wharf, Hotel, Restaurant etc



Specifications:



1. Outdoor LED Display Module

Module Size (W*H)

160mm*160mm

Pixel Configuration

1R1G1B

Pixel Pitch

10mm

     Resolution (W*H)

16 dots*16 dots

Pixel Density

10000 dots/㎡

LED Type

3mm Oval Lamp



2. Outdoor LED Display Cabinet

Cabinet Size (W*H)

960mm*640mm

Module Qty

24 pcs

  Cabinet Resolution (W*H)

96 dots*64 dots

Cabinet Pixel

6144

Weight

50 kg/ Cabinet

Area

0.6144㎡

Average Power Consumption

300w/㎡

Max Consumption

1000 W/m2



3. Methods for Quality Assurance

a. Vibration Testing

Condition: 3-5 mins up and down in 5mm range



4. Outdoor LED Display Technical Parameter

Model No.

NS-OR-DD-P10

Pixel Pitch

10mm

Module Size

160mm*160mm

Module Resolution (W*H)

16 dots*16 dots

Pixel Density

10000 dots/ ㎡

LED Type

3mm Oval Lamp

Pixel Configuration

1R1G1B

Wavelength (R.G.B)

R:625±2nm G:525±2nm B:470±2nm

Drive Mode

Dynamic 1/4 Duty Constant Current

Cabinet Size

960×640×150mm

Cabinet Resolution

96dots×64dots

Brightness

≥6000cd/㎡

Contrast

≥2000:1

Viewing Angle

110°(Horizontal )/45°(Vertical )

Best Viewing Distance

10m-300m

Grey Scale

10bits/1024levels

Color Capability

16777216

Color Temperature

5000-9300K

Maximum Power Consumption

1000 W/m2

Average Power Consumption

350 W/m2

Working Voltage

AC 220V/110V s±15% 50-60 HZ

Frame Frequency

60-85 HZ

Refresh Frequency

240 - 1000HZ

Brightness Correction

Pixel, Module, Cabinet Correction

Operating Temperature

Static:-40℃~+85℃Working:-20~+65℃

Operating Humidity

10-90% RH

LED Lifespan

100,000 hours

MTBF

≥50,000 hours

Computer Operation System

Win 98/ Win XP/ Win 2000

Video Signal Input

RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite

Video Signal Output

RF, S-Video, RGB, RGBHV, YUV, YC etc.

Graphics Card

DVI Graphics Card

Control Distance

LINSN / NOVA / DB-STAR

Software

LED studio 10.0

Waterproof Level

IP65(Front Side), IP54 (Back Side

Installation

Wall mount, hung and stand structure

Out of Control Rate

0.01 %



5. Factory Equipment



Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.



6. Package

Flight case and Fumigation-Free wooden case



7. Control System Connection



8. Competitive Advantage:

1.  Long Life Span

2. Good Quality and great Performance

3. High Cost Effective

4. Free maintenance service

5. Front/Rear access Available
