Product Details:
Payment & Shipping Terms:
|
| LED Type: | SMD 3528 | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Pixel Pitch: | 8mm | Product Name: | Led Display Boards/led Display Signs |
| Protection Ratings: | IP31 | Tube Chip Color: | Full Color |
| Use: | Outdoor | ||
| Highlight: | outdoor rental led display,outdoor led video display |
||
Quick Detail:
1. P8 outdoor rental used
2. Size changeable
3. Variety input source
4. Longer view distance
5. High brightness& refresh rate

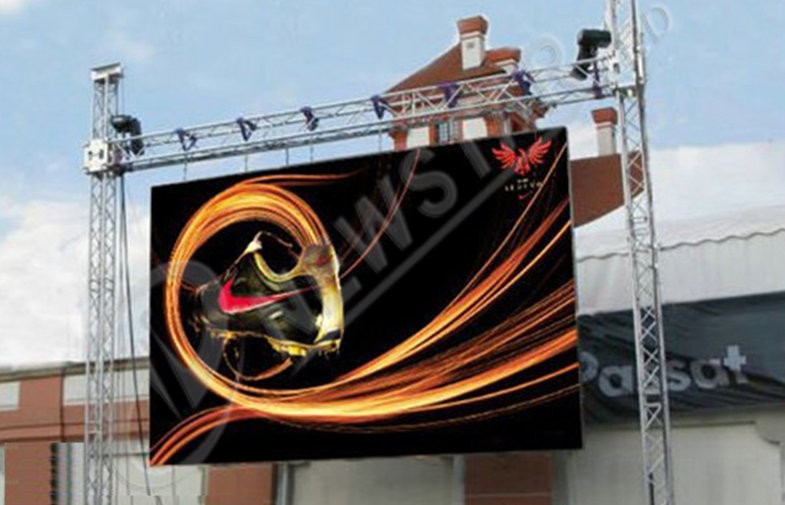

P8mm SMD3535 Event Outdoor Full Color LED Display Rental , High Brightness
Description:
1. The pitch 8mm led rental display with High-performance aluminum alloy frame with the weight only
14.5kg, which can save transportation cost and reduce labor intensity effectively.
2. Using quick rim lock to connect left-right and up-down cabinets, needs only 10s to install one cabinet,
very quick and easy for installing
3. Nanotechnology applied in the module, the protection rate can reach IP65.
4. Using the design of removable dowel pin, so a single cabinet can be taken out from the whole screen to
have a repairment.
Applications:
Commercial advertising, mobile media, night club, entertainment events, business establishments, such as
banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,
shopping malls, railways, airports, harbors, etc;
Specifications:
1. Outdoor LED Display Module
|
Dimensions (w x h) |
256mmx128mm |
Resolution (w x h) |
32 x 16 |
|
Pixel pitch |
8mm |
Pixel Density |
15625/㎡ |
|
Pixel Configration |
1R1G1B 3 IN 1 |
SMD 3528 |
|
2. Outdoor LED Display Cabinet
|
Dimensions(w x h x d)(mm) |
768x640x85 |
Module Quantity |
15 |
|
Physical Resolution (w x h) |
96 x 80 |
Physical Pixels (total) |
7680 |
|
Weight/Panel (kgs) |
15 |
Material |
Steel |
|
Average Power/sqm (watts) |
260 |
Max Power/sqm(watts) |
780 |
3. Methods for Quality Assurance
a. Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
4. Outdoor LED Display Technical Parameter
|
Model No. |
NS-OR-SD-P8 |
|
Pixel Pitch |
8mm |
|
Module Size |
256mm×128 mm |
|
Module Resolution(Pixel) |
32dots×16dots |
|
Pixel Density |
15625dots/m2 |
|
LED Type |
SMD 3 in 1 |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/4 Duty Constant Current |
|
Cabinet Size |
1024×768×135mm |
|
Cabinet Resolution |
128dots×96dots |
|
Brightness |
≥6000 cd/m2 |
|
Contrast |
≥ 2000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Best Viewing Distance |
6m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
780W/m2 |
|
Average Power Consumption |
260W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
240 - 1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40°C ~+85°C Working:-20~+65°C |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video,RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, GB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
|
Control System |
LED studio 10.0 |
|
Software |
LINSN OR DB-STAR |
|
Waterproof Level |
IP31 |
|
Installation |
Wall mount, hung and stand structure |
|
Out of Control Rate |
0.01 % |
5. Factory Equipment
6. Package
Flight case and Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. Onsite installation instruction and regular inspection
