Transparent Slim Full HD LED Display Indoor Video Wall Screen , High Resolution

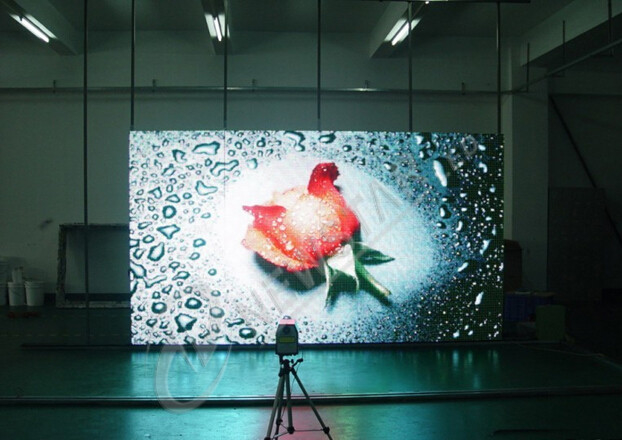

Large Image : Transparent Slim Full HD LED Display Indoor Video Wall Screen , High Resolution Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	WS-15

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	Negotiable
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	8-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Month

Contact Now

Detailed Product Description

Brightness:	≥5000 Nit	Product Name:	Led Display Screen/led Display Panels
Pixel Pitch:	15.625mm	Pixel Configuration:	1R1G1B
Tube Chip Color:	Full Color	Protection Ratings:	IP65(Front Side );IP54(Back Side)
High Light:	High Definition LED display , high resolution led screen

Transparent Slim Full HD LED Display Indoor Video Wall Screen , High Resolution

Quick Detail:

1. Special cabinet design, cooling fast

2. Wonderful product especially for stage use.

3. Available models: P10.417, P12.5, P15.625.

4. Package with flight case, easy to move.

5. No tools needed, can be installed with 1 person.

6.Cabinet material: Aluminum

Description:

1. Fast lock design help to fast install

No tools needed, can be installed with 1 person.

2. Slim Design

One cabinet size is 500 x 5000 x 94mm

3. Can adjust the screen be curved

Panel connection angle can be adjusted by -15 degree to +15 degree. This allows arc shape available.

Applications:

Live broadcast: Gym, Stadium, Concert, Sport match, Competition, Gov publication etc.

Rental business: Entertainment, Wedding, Party etc.

Specifications:

1. LED Curtain Technical Parameter

Brightness	≥5000 nit
Color temperature	6500/9000 K
Viewing angle-H	140 (+70/-70) deg.
Viewing angle-V	140 (+70/-70) deg.
Cabinet weight	8 kg
Cabinet size (W×H×D)	500×1000×95 mm
Cabinet area	0.5 sqm.
Cabinet material	Aluminum
Ingress protection (Front/Rear)	IP65/IP54
Operating temperature	–20~+60 degree
Operating humidity	10%~ 90%
Pixel configuration	1R1G1B
Pixel pitch	15.625 mm
Module size	250x250 mm
Pixel matrix per module	24x24 dots
Pixel matrix per cabinet	48x96 dots
Pixels per cabinet	4608 dots
Pixels per sq.m.	9216 dots
Minimum viewing distance	10 m
Gray scale	4096 level
Brightness control	256 level
Refresh frequency	>1000 Hz
Driving mode	1/6 scan constant current driving
Input voltage (AC)	100 ~ 240 V
Input power frequency	50 or 60 Hz
Power consumption per sq.m. (max/avg)	800/300 W
Blind spot rate	<1/10000
Lifetime at 50% brightness	100000 hours
Red wavelength (Typical)	623 nm
Green wavelength (Typical)	523 nm
Blue wavelength (Typical)	475 nm
Signal input format (with video processor)	AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Operating system	Windows (2000/XP/Vista)
Control distance	CAT5 cable <100 m Single fiber <10 km

2. LED Curtain Cabinet

Dimensions(w x h x d)(mm)	500x500x94	Cabinet area	0.25 sqm.
Physical Resolution (w x h)	32x32	Physical Pixels (total)	1024
Weight/Panel (kgs)	8	Material	Aluminum
Average Power/sqm (watts)	300	Max Power/sqm(watts)	800

3.Methods for Quality Assurance

a. Aging

1. 100% fully test

2. Condition: 72 hours with 256 grey level

b. Vibration Testing

Condition: 3-5 mins up and down in 5mm range

4. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

5. Package

Flight case and Fumigation-Free wooden case

6. Control System Connection

7. Competitive Advantage:

1. 2 years’ warranty with free repair service

2. 24/7 Hours online remote support

3. Solution and PCB design

4. Free factory training

5. Onsite installation instruction and regular inspection
