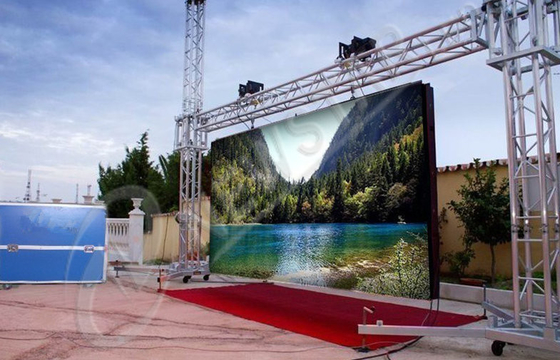

Large Rental Led Screen Pixel Pitch 10mm Video Wall Led Display For Concert
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Pixel Configuration: | 1R1G1B | Pixel Pitch: | 10mm |
|---|---|---|---|
| Product Name: | Led Display Boards/led Display Signs | Protection Ratings: | IP65 |
| Tube Chip Color: | Full Color | Use: | Outdoor |
| High Light: | digital billboard advertising,outdoor led advertising signs |
||
Large Rental Led Screen Pixel Pitch 10mm Video Wall Led Display For Concert
Quick Detail:
1. Available models:P8,P10,P12,P16,P20 ect.
2. CE and RoHS approval
3. Front accessible maintenance
4. Excellent contrast ratio, high definition
5. High brightness and perfect uniformity
6. Waterproof IP65
7. 24 months warranty.And lifelong free tech-support.
Waterproof SMD Outdoor Full Color Led Display Screen P10mm For Concert 10000dots/m2
Description:
1. High Contrast ratio: 4000:1
This is a very high level to ensure a vivid image of our LED display screen system.
2. First-class LED chip:
Supplied by high strictly selected SMD3535 LED
3. Clear vivid image quality:
Perfect color blending and comfortable visual effect
4. Easy Installation & operation:
Slim and light LED panel, user friendly software for an easy interface to operate the LED system
5. Easy maintenance:
Front and rear cabinet access maintenance
Applications:
Ideal for dazzling different events, such as Stage, Concert, Fashion Show, Wedding, Conference, Building,
Hotel, Club & Bars, Festival, etc.
Specifications:
1. SMD Outdoor LED Display Technical Parameter
|
Model No. |
NS-IR-DS-P10 |
|
Pixel Pitch |
10mm |
|
Module Size |
320mm×160 mm |
|
Module Resolution(Pixel) |
32dots×16dots |
|
Pixel Density |
10000dots/m2 |
|
LED Type |
SMD 3 in 1 |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/4 Duty Constant Current |
|
Cabinet Size |
960×960×135mm |
|
Cabinet Resolution |
96dots×96dots |
|
Brightness |
≥6000 cd/m2 |
|
Contrast |
≥ 2000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Best Viewing Distance |
10m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
1000W/m2 |
|
Average Power Consumption |
350W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
240 - 1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40°C ~+85°C Working:-20~+65°C |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, GB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
|
Control System |
LED studio 10.0 |
|
Software |
LINSN / Nova/ DB-STAR |
|
Waterproof Level |
IP65 |
|
Installation |
Wall mount, hung and stand structure |
|
Out of Control Rate |
0.01 % |
2. Outdoor LED Display Module
|
Module Size (W*H) |
320mm*160mm |
Pixel Configuration |
1R1G1B |
|
Pixel Pitch |
10mm |
Resolution (W*H) |
32 dots*16 dots |
|
Pixel Density |
10000 dots/㎡ |
LED Type |
SMD 3 in 1 |
3. Outdoor LED Display Cabinet
|
Cabinet Size (W*H) |
960mm*960mm |
Module Qty |
18 pcs |
|
Cabinet Resolution (W*H) |
96 dots*96 dots |
Cabinet Pixel |
9216 |
|
Weight |
40 kg/ Cabinet |
Area |
0.9216㎡ |
|
Average Power Consumption |
350w/㎡ |
Max Consumption |
1000W/m2 |
4.Methods for Quality Assurance
a. Aging
b. Waterproof test
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
6. Package
Flight case and Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. Reasonable Price, Superior Service.
2. Long Life Span > 100,000 hours
3. Free maintenance service
4. Front/Rear access Available
5. High Quality and High performance
