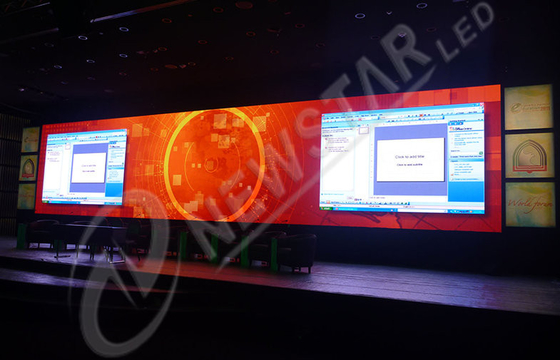

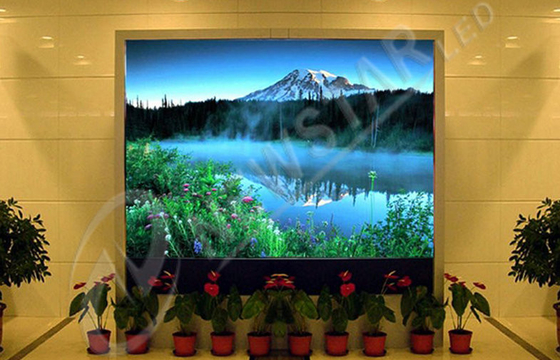

SMD 3 In 1 Full Color Indoor LED Video Wall , P6 Billboard LED Display Screen 140 Degree

small.img.alt small.img.alt

Large Image :  SMD 3 In 1 Full Color Indoor LED Video Wall , P6 Billboard LED Display Screen 140 Degree Get Best Price

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Newstar-LED
Certification: CE, RoHS, UL, FCC, ISO
Model Number: NS-IR-DS-P6
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc/ 1 sqm.
Price: US $1,000-2,000 /sqm.
Packaging Details: Flight case /Fumigation-Free wooden case
Delivery Time: 8-25days after received the payment
Payment Terms: T/T
Supply Ability: 2000 Square Meter/Month
Detailed Product Description
LED Type: SMD 3528 Pixel Configuration: 1R1G1B
Pixel Pitch: 6mm Product Name: Led Display Panel/advertising Led Displays
Tube Chip Color: Full Color Use: Indoor
High Light:

flexible led video screen


indoor advertising led display

SMD 3 In 1 Full Color Indoor LED Video Wall , P6 Billboard LED Display Screen 140 Degree

Quick Detail:

1. ≤1mm surface level up, smooth video

2. Perfect quality and stability, 24/7 running

3. Front or Rear Access Service

4. 2 years warranty

5. Long lifespan up to 100,000 hours

6. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION



1. Convenient and fast installation

We adapted Plug and play designing for this series, the power and signal connector is quite easy and fast

for in&out operation; and the signal connection can be in horizontal and vertical ways, it satisfied the rental

application in any cases.

2. Super wide viewing angle (140 Degree)

The SMT technology and one line chip encapsulation optimized the viewing performance even at wide

viewing angle up to 120-140 degree, the gorgeous color uniform will satisfy the nitpicker's eyes.

3. Easy maintenance

All electrical parts was connected by a driving board inside the aluminum panel, it helps to decide which

part faults when problem comes out and can be replaced quickly.

4. High refresh rates and color contrast

In consider of the full range rental application even for the high end TV shows or Talks, we improved the

base material supplying with all pure black color ones, it enhances the white/black color contrast greatly,

further and more, we raise the refresh rates up to 4000Hz, you'll not worry about the scanning lines be

watched by your living camera.


Commercial advertising, mobile media, night club, entertainment events, business establishments, such as

banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,

shopping malls, railways, airports, harbors, etc;



1. Indoor LED Display Technical Parameter

Model No.


Pixel Pitch


Module Size


Module Resolution(pixels)


Pael Size


Panel Resolution(pixels)


Pixel Configuration(RGB)


Pixel Density(pixels/m2)




Best Viewing Distance(m)


Max.Power Consumption(W/m2)


Waterproof Level



R 620-625 G 520-525 B 470-475



Viewing Angle


Operating Tempreture


Video Frame Rate(Hz)


Display Refresh Rate(Hz)


Grey Level(colors)



≥50000 hours



Working Voltage

220V±15% OR 110V±15%

Drive Mode

Constant 1/8

Graphics Card

DVI Graphics card

Video Signal

RF, S-Video, RGB, RGBHV, YUV, YC, etc.

Control System



LED studio 10.0


Wall mount, hung and stand structure



2. Indoor LED Display Module

Dimensions (w x h)


Resolution (w x h)

32 x 16

Pixel pitch


Pixel Density


Pixel Configration

1R1G1B 3 IN 1

SMD 3528



3. Indoor LED Display Cabinet

Dimensions(w x h x d)(mm)


Module Quantity


Physical Resolution (w x h)

96 x 96

Physical Pixels (total)


Weight/Panel (kgs)



Cold rolled steel

Average Power/sqm (watts)


Max Power/sqm(watts)



4. Methods for Quality Assurance

a. Aging

1. 100% fully test

2. Condition: 72 hours with 256 grey level


 b. Vibration Testing

 Condition: 3-5 mins up and down in 5mm range


5. Factory Equipment


Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.


6. Package

Flight case and Fumigation-Free wooden case


7. Control System Connection

8. Competitive Advantage:

1. 2 years’ warranty with free repair service

2. 24/7 Hours online Remote Support

3. Solution and PCB design

4. Free factory training

5. Onsite installation instruction and regular inspection
