Flexible Indoor Full Color Advertising Led Display Screen P6 Led Video Wall Panel
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| LED Type: | SMD 3528 | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Pixel Pitch: | 6mm | Product Name: | Full Color Led Sign/indoor Led Display |
| Protection Ratings: | IP65 | Tube Chip Color: | Full Color |
| High Light: | indoor led screen rental,indoor led display screen |
||
Flexible Indoor Full Color Advertising Led Display Screen P6 Led Video Wall Panel
Quick Detail:
1. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION
2. ≤1mm surface level up, smooth video
3. Perfect quality and stability, 24/7 running
4. Powerful supply for big order.
5. Longer lifespan. (more than 100,000 hours life)
6. Modular design, flexible shape for big area
P6 High Resolution Indoor Full Color Led Display for Shopping Malls 1R1G1B 2000 cd/m2
Description:
1. Convenient and fast installation
We adapted Plug and play designing for this series, the power and signal connector is quite easy and fast
for in&out operation; and the signal connection can be in horizontal and vertical ways, it satisfied the rental
application in any cases.
2. Super wide viewing angle (140 Degree)
The SMT technology and one line chip encapsulation optimized the viewing performance even at wide
viewing angle up to 120-140 degree, the gorgeous color uniform will satisfy the nitpicker's eyes.
3. Easy maintenance
All electrical parts was connected by a driving board inside the aluminum panel, it helps to decide which
part faults when problem comes out and can be replaced quickly.
4. High refresh rates and color contrast
In consider of the full range rental application even for the high end TV shows or Talks, we improved the
base material supplying with all pure black color ones, it enhances the white/black color contrast greatly,
further and more, we raise the refresh rates up to 4000Hz, you'll not worry about the scanning lines be
watched by your living camera.

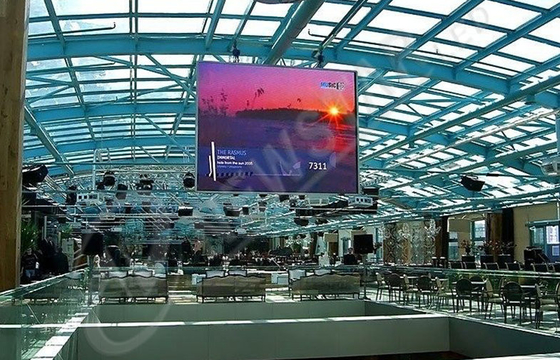

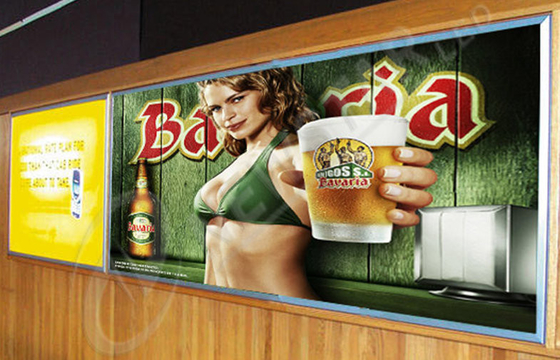

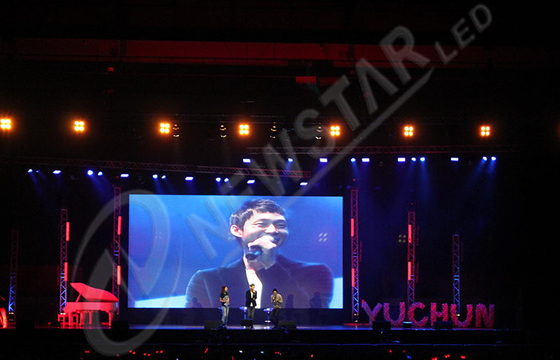

Applications:
Commercial advertising, mobile media, night club, entertainment events, business establishments, such as
banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,
shopping malls, railways, airports, harbors, etc;
Specifications:
1. Indoor LED Display Technical Parameter
|
Model No. |
NS-IR-DS-P6 |
|
Pixel Pitch |
6mm |
|
Module Size |
192*96mm |
|
Module Resolution(pixels) |
32*16 |
|
Pael Size |
960mm×768mm |
|
Panel Resolution(pixels) |
160×128 |
|
Pixel Configuration(RGB) |
1R1G1B |
|
Pixel Density(pixels/m2) |
27777 |
|
Brightness(cdm2) |
2000 |
|
Best Viewing Distance(m) |
6-100 |
|
Max.Power Consumption(W/m2) |
1350 |
|
Waterproof Level |
IP65 |
|
Vavelength |
R 620-625 G 520-525 B 470-475 |
|
LED SPEC |
3528 |
|
Viewing Angle |
140°(H)/60°(V) |
|
Operating Tempreture |
–20~50°C |
|
Video Frame Rate(Hz) |
≥60HZ |
|
Display Refresh Rate(Hz) |
≥300HZ |
|
Grey Level(colors) |
16.7million |
|
MTBF |
≥50000 hours |
|
Lifespan |
≥100000Hours |
|
Working Voltage |
220V±15% OR 110V±15% |
|
Drive Mode |
Constant 1/8 |
|
Graphics Card |
DVI Graphics card |
|
Video Signal |
RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
|
Control System |
LINSN |
|
Software |
LED studio 10.0 |
|
Installation |
Wall mount, hung and stand structure |
2. Indoor LED Display Module
|
Dimensions (w x h) |
192mmx96mm |
Resolution (w x h) |
32 x 16 |
|
Pixel pitch |
6mm |
Pixel Density |
27777/㎡ |
|
Pixel Configration |
1R1G1B 3 IN 1 |
SMD 3528 |
|
3. Indoor LED Display Cabinet
|
Dimensions(w x h x d)(mm) |
576x576x135 |
Module Quantity |
18 |
|
Physical Resolution (w x h) |
96 x 96 |
Physical Pixels (total) |
9216 |
|
Weight/Panel (kgs) |
30 |
Material |
Cold rolled steel |
|
Average Power/sqm (watts) |
300 |
Max Power/sqm(watts) |
1000 |
4. Methods for Quality Assurance
a. Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
6. Package
Flight case and Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. Onsite installation instruction and regular inspection
