P10mm RGB Front Service LED Display , Epistar / Silan Digital Display Board

Large Image : P10mm RGB Front Service LED Display , Epistar / Silan Digital Display Board Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	NS-OR-DD-P10

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $1,000-2,000 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	8-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Square Meters per Month

Contact Now

Detailed Product Description

Product Name:	Led Display Panels/large Led Display	Pixel Pitch:	10mm
Pixel Configuration:	1R1G1B	Tube Chip Color:	Full Color
Use:	Outdoor	LED Type:	3mm Oval Lamp
High Light:	RGB LED Display , outdoor led display screen

Quick Detail:

1. Billboard advertising super brightness, waterproof IP65

2. 48bit colors processing

3. Energy saving, easy maintenance

4. Advanced dot adjusting

5. CE,ROHS,UL,ISO,CCC

6. Viewing Angle:110°(Horizontal )/45°(Vertical )

P10 RGB Front Service LED Display , Epistar / Silan Digital Display Board

Description:

1. Front-maintained : it also called front servicing, we know servicing have two form: one is

front servicing, another is back servicing. mostly we used back servicing, because front servicing is not

safe, and it hard to servicing, especially in fixed installation and set wall installation.

2. Front maintenance is generally the front before opening the door, This way is also open the door to

better maintenance. Some are in the module on drilling, than it can easy to servicing in front.

3. Front maintenance does not see more ,but it not to say that is never used front maintenance .no matter

what maintained we know that it just to protect the led display, and let the led display become good used.

ensure the quality of the led display. when it was broken, we can immediately put it right.

4. Front maintenance simplify understanding is that when the display worse ,repair from the front .

Applications:

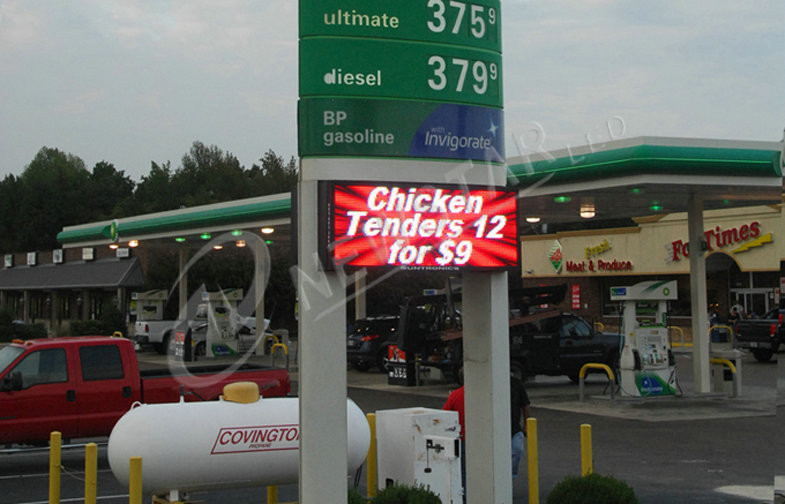

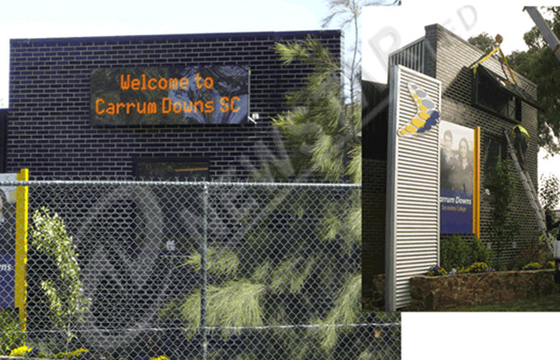

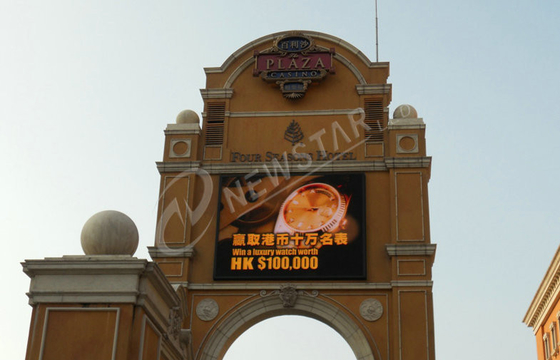

Commercial advertising: Square, Road side, High way, Airport, Wharf, Hotel, Restaurant etc

Specifications:

1. Outdoor LED Display Technical Parameter

Model No.	NS-OR-DD-P10
Pixel Pitch	10mm
Module Size	160mm*160mm
Module Resolution (W*H)	16 dots*16 dots
Pixel Density	10000 dots/ ㎡
LED Type	3mm Oval Lamp
Pixel Configuration	1R1G1B
Wavelength (R.G.B)	R:625±2nm G:525±2nm B:470±2nm
Drive Mode	Dynamic 1/4 Duty Constant Current
Cabinet Size	960×640×150mm
Cabinet Resolution	96dots×64dots
Brightness	≥6000cd/㎡
Contrast	≥2000:1
Viewing Angle	110°(Horizontal )/45°(Vertical )
Best Viewing Distance	10m-300m
Grey Scale	10bits/1024levels
Color Capability	16777216
Color Temperature	5000-9300K
Maximum Power Consumption	1000 W/m2
Average Power Consumption	350 W/m2
Working Voltage	AC 220V/110V s±15% 50-60 HZ
Frame Frequency	60-85 HZ
Refresh Frequency	240 - 1000HZ
Brightness Correction	Pixel, Module, Cabinet Correction
Operating Temperature	Static:-40℃~+85℃Working:-20~+65℃
Operating Humidity	10-90% RH
LED Lifespan	100,000 hours
MTBF	≥50,000 hours
Computer Operation System	Win 98/ Win XP/ Win 2000
Video Signal Input	RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite
Video Signal Output	RF, S-Video, RGB, RGBHV, YUV, YC etc.
Graphics Card	DVI Graphics Card
Control Distance	LINSN / NOVA / DB-STAR
Software	LED studio 10.0
Waterproof Level	IP65(Front Side), IP54 (Back Side)
Installation	Wall mount, hung and stand structure
Out of Control Rate	0.01 %

2. Outdoor LED Display Module

Module Size (W*H)	160mm*160mm	Pixel Configuration	1R1G1B
Pixel Pitch	10mm	Resolution (W*H)	16 dots*16 dots
Pixel Density	10000 dots/㎡	LED Type	3mm Oval Lamp

3. Outdoor LED Display Cabinet

Cabinet Size (W*H)	960mm*640mm	Module Qty	24 pcs
Cabinet Resolution (W*H)	96 dots*64 dots	Cabinet Pixel	6144
Weight	50 kg/ Cabinet	Area	0.6144㎡
Average Power Consumption	300w/㎡	Max Consumption	1000 W/m2

4. Methods for Quality Assurance

a. Aging

1. 100% fully test

2. Condition: 72 hours with 256 grey level

b. Vibration Testing

Condition: 3-5 mins up and down in 5mm range

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

8. Competitive Advantage:

1. High quality and high performance

2. Long Lifespan

3. High cost effective

4. Free maintenance service

5. Front/Rear access available
