P6 Indoor Curved LED Display Full Color For Mobile Media Advertising
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Tube Chip Color: | Full Color | Product Name: | Curved Led Screen/led Curved Display |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B | Use: | Outdoor |
| Protection Ratings: | IP31 | LED Type: | SMD |
| High Light: | curved wall display,curved led screen |
||
P6 Indoor Curved LED Display Full Color For Mobile Media Advertising
Quick Detail:
1. ≤1mm surface level up, smooth video
2. Curved Design and Good Appearance
3. Perfect quality and stability, 24/7 running
4. Front or Rear Access Service
5. Long lifespan up to 100,000 hours
6. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION
Description:

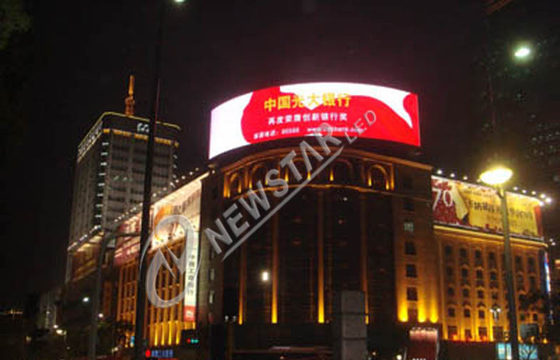

1. It can be curved into different shape to fit convex or concave wall or rugged wall or building, and it can
be shaped into column to wrap pillars for animation decoration.
2. Easy to maintain, high resolution, good contrast ratio, easy to install. Widely used as the information
billboard in Airport, Railway station, and big shopping mall, concert and etc.
3. The brightness of indoor LED signs can be adjustable for different environment.
4. We make best design with high cost- efficiency due to different demands and we can offer OEM service
as well.
Applications:
Commercial advertising, mobile media, night club, entertainment events, business establishments, such as
banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,
shopping malls, railways, airports, etc;
Specifications:
1. Indoor LED Display Technical Parameter
|
Model No. |
NS-IR-DS-P6 |
|
Pixel Pitch |
6mm |
|
Module Size |
192mm×96mm |
|
Module Resolution(Pixel) |
32dots×16dots |
|
Pixel Density |
27777dots/m2 |
|
LED Type |
SMD |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
1/8 |
|
Cabinet Size |
960×768×135mm |
|
Cabinet Resolution |
160dots×128dots |
|
Brightness |
≥2000 cd/m2 |
|
Contrast |
≥ 4000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Best Viewing Distance |
4m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
1000W/m2 |
|
Average Power Consumption |
350W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
240 - 1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40°C ~+85°C Working:-20~+65°C |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, GB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
|
Control System |
LED studio 10.0 |
|
Software |
LINSN / Nova/ DB-STAR |
|
Waterproof Level |
IP31 |
|
Installation |
Wall mount, hung and stand structure |
|
Out of Control Rate |
0.01 % |
2. Indoor LED Display Module
|
Module Size (W*H) |
192mm*96mm |
Pixel Configuration |
1R1G1B |
|
Pixel Pitch |
6mm |
Resolution (W*H) |
32dots*16 dots |
|
Pixel Density |
27777 dots/㎡ |
LED Type |
SMD |
3. Indoor LED Display Cabinet
|
Cabinet Size (W*H) |
960mm*768mm |
Module Qty |
40 pcs |
|
Cabinet Resolution (W*H) |
160 dots*128 dots |
Cabinet Pixel |
20480 |
|
Weight |
40kg/ Cabinet |
Area |
0.737㎡ |
|
Average Power Consumption |
600w/㎡ |
Max Consumption |
1300W/m2 |
4. Methods for Quality Assurance
a. Aging
b. Waterproof test
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
6. Package
Flight case and Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. 24/7 Online support service
2. Free onsite maintenance / Year
3. Solution design
4. Free online training any time
5. High quality raw material used like neutrik flight connector, MBI IC etc.
