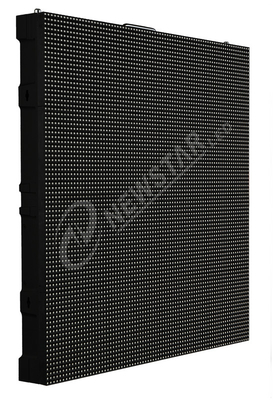

Ultra Thin High Brightness video wall led display , led advertising panel 6mm Pixel pitch
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Module Size: | 320*160mm | Panel Dimension: | 640*640mm |
|---|---|---|---|
| Panel Weight: | 28.6lbs | Tube Chip Color: | Full Color |
| LED Configuration: | SMD 3 In 1(3535) | Display Function: | Video |
| Useage: | Outdoor | Warranty: | 2 Years |
| High Light: | outdoor rental led display,outdoor led video display |
||
Ultra Thin High Brightness video wall led display , led advertising panel 6mm Pixel pitch
Module Parameter
| Pixel pitch | 6.67mm |
| Configuration | RGB |
| LED Type | 3 -in 1 SMD 3535 |
| Module Size | 320*160mm |
| Module resolution | 48*24dots |
Cabinet Parameter
| Cabinet size | 640*640mm |
| Cabinet resolution | 96*96 |
| Cabinet material | Die casting aluminum |
| Cabinet weight | 13KG |
Screen Parameter
| Pixel Pitch | 6.67mm |
| Driving Mode | Constant 1/6 |
| Refresh Rate | >2000Hz |
| Brightness | >7000cd/m2 |
| Power Consumption | Avg:600W/Panel |
| Grayscale | 65536level |
| Viewing Angle(H/V) | 140º/140º |
| Life span | 100,000 hours at 50% brightness |
| IP Rating | IP65 |
| Warranty | 2 years |
Control System
| Brand | Nova/Linsn |
| Type | Synchronous/Asychronous |
| Network | LAN/3G/WIFI |
Product Features
- Die-casting Aluminum structure by high precision processing technology and result in good heat dissipation
- Flexible assembling structure, simple cabinet design with weight 13kg and thickness 75mm, ultra light & ultra slim
- Portable and easy to set-up & dismantle with four spring fast locks on each panel
- High brightness standard and IP65 Rating makes no pity for wonderful stage events or performance.

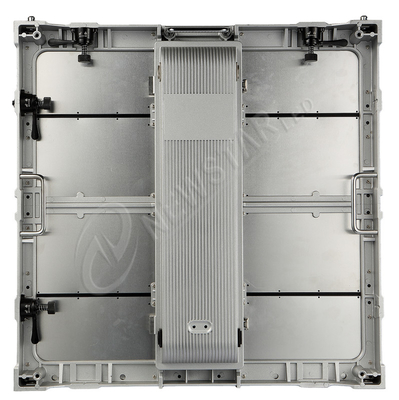

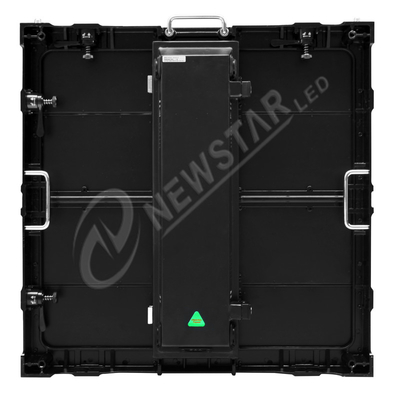

Details of Cabinet
Cabinet Installation Diagram
Application
Newstar Kingkong Series are featured by robust,easy to set-up and dismantle.It is a fantastic choice for outdoor usage.
