Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum Die-casting | Panel Size: | 500*500*75mm |
|---|---|---|---|
| Panel Weight: | 8kg | Grayscale: | 65536level |
| Lifespan: | 100000hrs At 50%brightness | IP Rating: | IP3X |
| Control System: | Novastar/Linsn | Warranty: | 2 Years |
| Highlight: | stage background led screen,Stage Led Display |
||
Front Service Indoor 500X500mm Aluminum Die-casting Beyond Expectation Rental & Stage LED Display
Technicals
| Item | Indoor | |||
| Fantasy Series | 3.91mm | 4.81mm | 5.682mm | 6.25mm |
| LED Configuration | 1R1G1B SMD2020 Black | 1R1G1B SMD2020 | 1R1G1B SMD3528 | 1R1G1B SMD3528 |
| Module Size | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm |
| Module resolution | 64*64dots | 52*52dots | 44*44dots | 40*40dots |
| Pixel Density | 65536picels/m2 | 43264picels/m2 | 30976picels/m2 | 25600picels/m2 |
| Brightness | ≧1200cd/m2 | ≧1200cd/m2 | ≧1200cd/m2 | ≧1500cd/m2 |
| Panel Resolution | 128*128dots | 104*104dots | 88*88dots | 80*80dots |
| Power Consumption |
Avg:105w/panel Max:300w/panel |
Avg:105w/panel Max:300w/panel |
Avg:105w/panel Max:300w/panel |
Avg:105w/panel Max:300w/panel |
| Driving Mode | 1/16 | 1/13 | 1/11 | 1/10 |
| Material | Aluminum Die-casting | |||
| Refresh Rate | 2880HZ | |||
| Gray Scale | 65536level | |||
| Viewing Angle(H/V) | 140°/140° | |||
| Panel Size/Weight | 500*500*75mm/8kg | |||
| IP Rating | IP3X | |||
| Operating Temperature | -20℃-60℃ | |||
| Operating Humidity | 10%-90%RH | |||
| Lifespan | 10000hrs at 50% brightness | |||
| Control System | Novastar/Linsn | |||
More pictures show the product details
Side lock--easily to assemble & dismantle
Label--Just tell the information you want to show on this area,we can make it for you.
Power port & Signal Port makes cabinet connect together

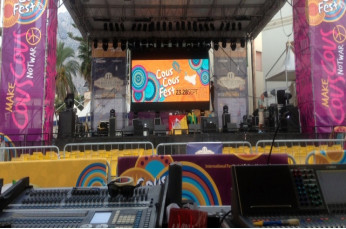

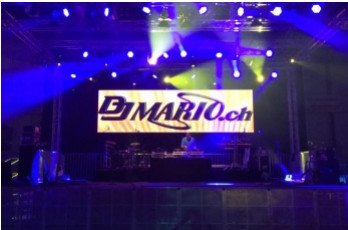

This model are widely used in stage events,TV stations,concerts,and expo events,conferences,live bars,etc.Pure Black LEDs are adopted into design,delivering super high definition pictures,videos.One try,Beyond expection!!!
ABOUT NEWSTAR
Who are we?
Established in 2008,we are a full color LED screen manufacturing specialist in Shenzhen,China.With years' development,we have worked out many states of the art products for our clients.We're please to help our customers to realize their goals through our LED screen.
What we have?
Over 5000 sq.m2 factory area,hundreds of employees,many high-tech machines to composite production lines,experienced R&D team,etc.
What we offer?
Our products cover infoor,outdoor,curtain and curved LED screens.They can be applied in different situations serving for different purposed accordingly.Besides,we are capable of providing customized solution for clients based on their special requirements.
Marketing Philosophy
4C:Customer,Cost,Communication,Convenience
4V::Variation,Versatility,Value,Vibration
Our International marketing team
Warranty
We offer 2 years' warranty and free replacment or repair to failure from:
1.Module,ventilator,power supply
2.Control system(graphics card,sender,receiver)
3.Cables
4.Software
