Product Details:
Payment & Shipping Terms:
|
| Pixel Configuration: | 1R1G1B | Pixel Pitch: | 5mm |
|---|---|---|---|
| Product Name: | Portable Led Signs/led Board Display | Protection Ratings: | IP31 |
| Tube Chip Color: | Full Color | Use: | Indoor |
| Highlight: | outdoor led message board,Outdoor LED Signs |
||
Quick Detail:
1. High Definition & High Performance
2. Vivid Picture Quality
3. 2 years warranty
4. Front and Rear Access Service for Options
5. Free onsite installation consulting
SMD P5 Rental Indoor LED Display Signs , 1R1G1B Flexible Led Video Screen For Stage
Description:
1. High Definition & High Performance
More than 40000 dots per sqm, LED display can show vivid HD images in true color.
2. Vivid Picture Quality
With High refresh rate and high quality LEDs, the screen delivers excellent visual effect to audience.
3. 2 years warranty
Free replacement and maintenance for spare parts is offered within warranty period. Permanent
maintenance service is offered before product’s life expires.
4. Front or Rear access Service Available
Our many outdoor screens have been used by our clients around the world for 3-5 years and no product
issues are called.
Applications:

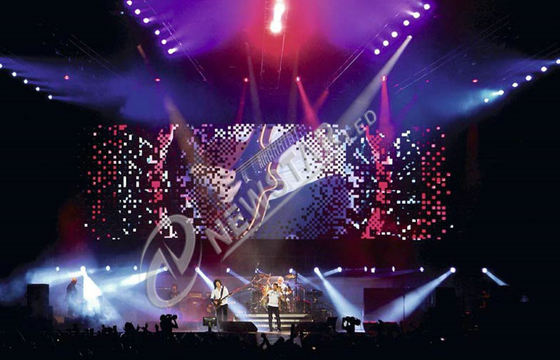

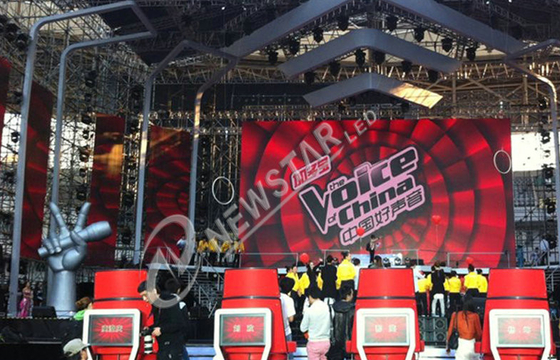

Comprehensive purposes like Cinema, Theatre, trade show, Bar etc.
Specifications:
1. Indoor LED Display Module
|
Module Size (W*H) |
160mm*160mm |
Pixel Configuration |
1R1G1B |
|
Pixel Pitch |
5mm |
Resolution (W*H) |
32dots*32 dots |
|
Pixel Density |
40000 dots/㎡ |
LED Type |
SMD |
2. Indoor LED Display Cabinet
|
Cabinet Size (W*H) |
800mm*640mm |
Module Qty |
20 pcs |
|
Cabinet Resolution (W*H) |
160 dots*128 dots |
Cabinet Pixel |
20480 |
|
Weight |
30kg/ Cabinet |
Area |
0.512㎡ |
|
Average Power Consumption |
600w/㎡ |
Max Consumption |
1300W/m2 |
3. Methods for Quality Assurance
a. Aging
b. Waterproof test
4. Indoor LED Display Technical Parameter
|
Model No. |
NS-IR-DS-P5 |
|
Pixel Pitch |
5mm |
|
Module Size |
160mm×160mm |
|
Module Resolution(Pixel) |
32dots×32dots |
|
Pixel Density |
40000dots/m2 |
|
LED Type |
SMD |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
1/16 |
|
Cabinet Size |
800×640×135mm |
|
Cabinet Resolution |
160dots×128dots |
|
Brightness |
≥2000 cd/m2 |
|
Contrast |
≥ 4000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Best Viewing Distance |
4m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
1000W/m2 |
|
Average Power Consumption |
350W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
240 - 1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40°C ~+85°C Working:-20~+65°C |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, GB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
|
Control System |
LED studio 10.0 |
|
Software |
LINSN / Nova/ DB-STAR |
|
Waterproof Level |
IP31 |
|
Installation |
Wall mount, hung and stand structure |
|
Out of Control Rate |
0.01 % |
5. Factory Equipment
6. Package
Flight case and Fumigation-Free wooden case
7. Competitive Advantage:
1. 24/7 Online support service
2. Free onsite maintenance / Year
3. Solution design
4. Free online training any time
5. High quality raw material used
